Workbench spindles (standard, double, ...) - HV

Spindels standard

  • workbench spindels for wood-work tables
  • quality rolled thread
  • cast iron casting
  • opening for wrench diameter 28 mm

Spindels standard - other versions

  • quality rolled thread
  • cast iron casting
  • opening for wrench diameter 28 mm

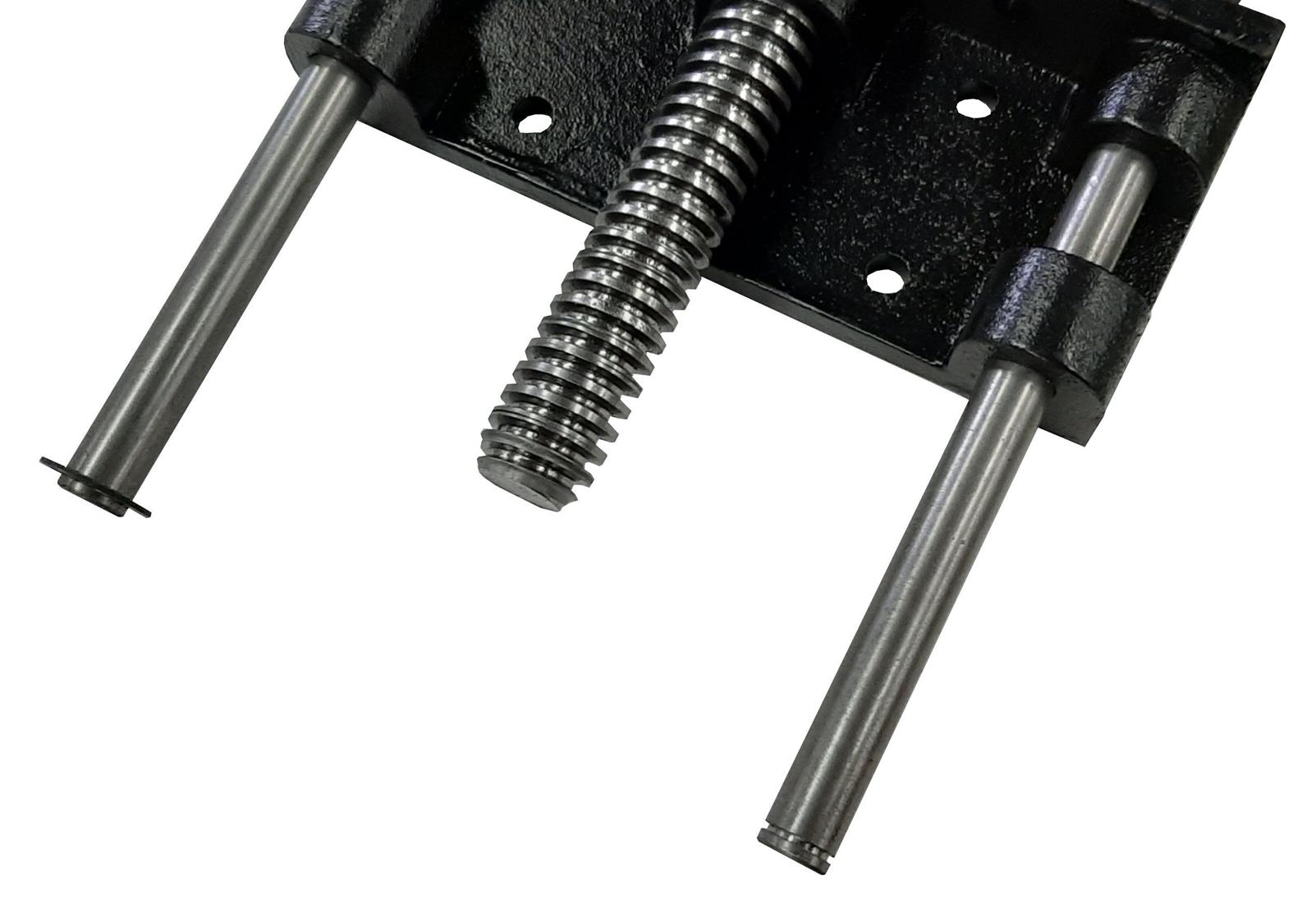

Workbench spindels for wood-work tables with double guideway

  • quality rolled thread
  • cast iron casting
  • opening for wrench diameter 28 mm

Order No.

Type

Weight [kg] Thread [mm] Total length
 [mm]
Working length
 [mm]
Price from [euro]

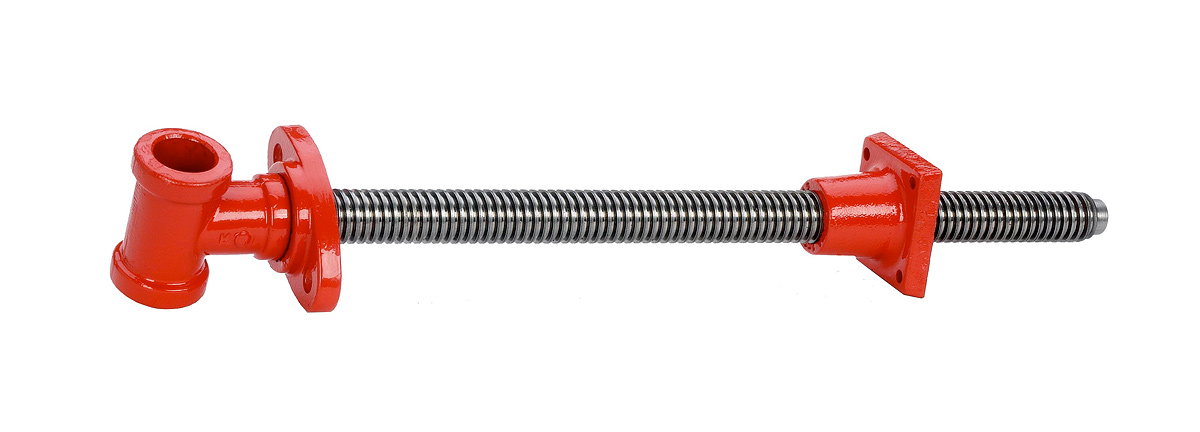

04.03.01.01.0.0 HV 510  3,4  Tr 28x5 535 390 27,50 €

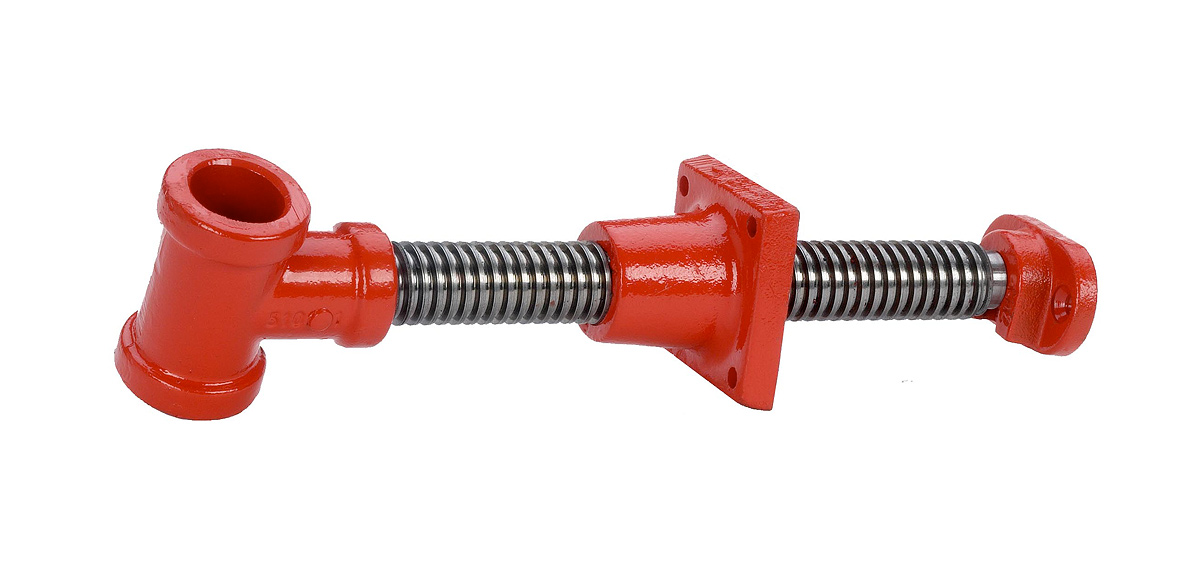

04.03.01.02.0.0 HV 511 2,4 Tr 28x5 330 165 24,10 €

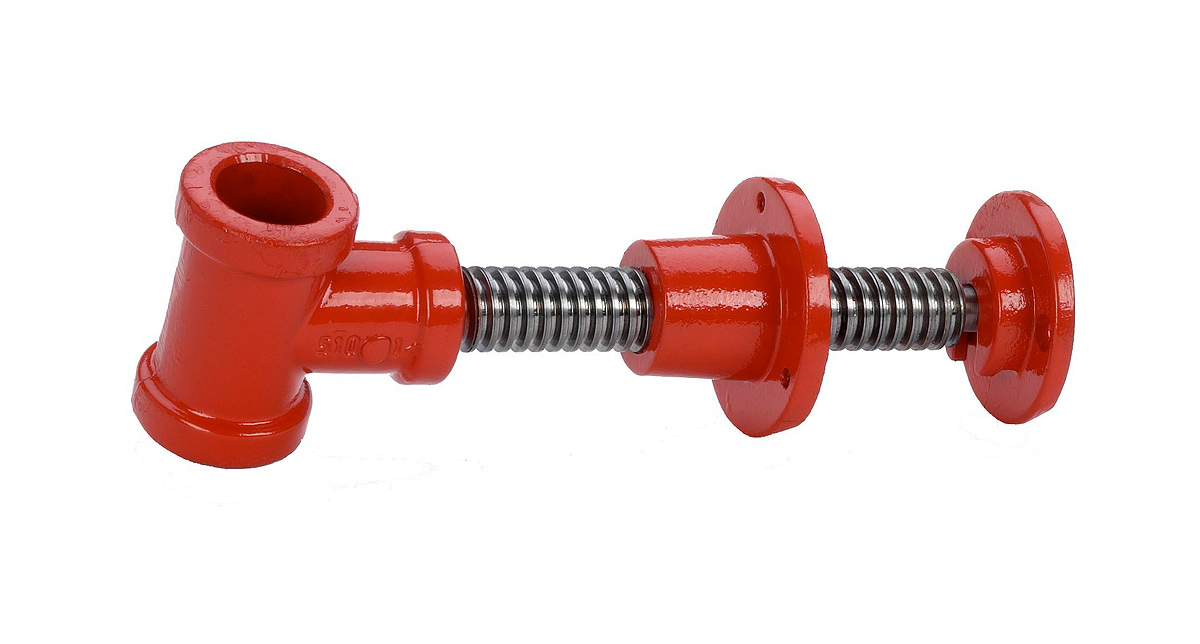

04.03.01.03.0.0   HV 512 1,5  Tr 24x5 255 100 23,80 €

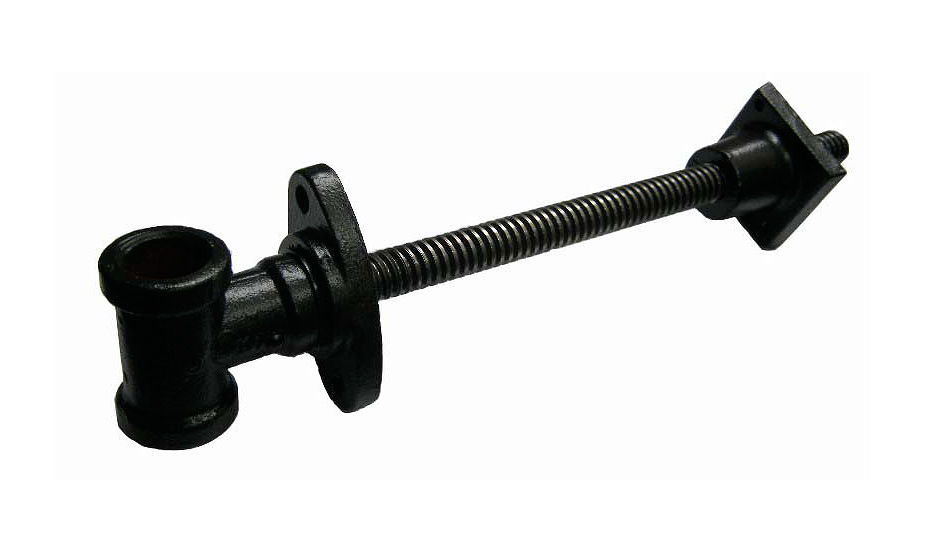

04.03.01.04.0.0 HV 514 2,5 Tr 22x5 435 280 25,60 €

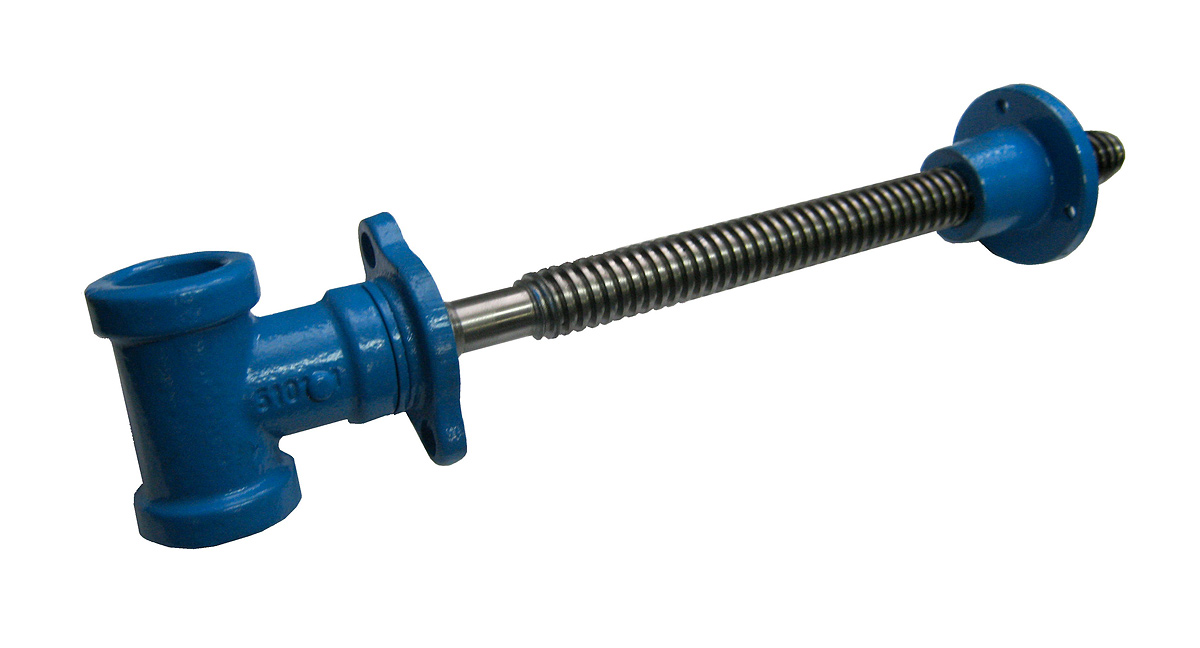

04.03.01.07.0.0    HV 517  2,1  Tr 24x5 400 230 25,50 €

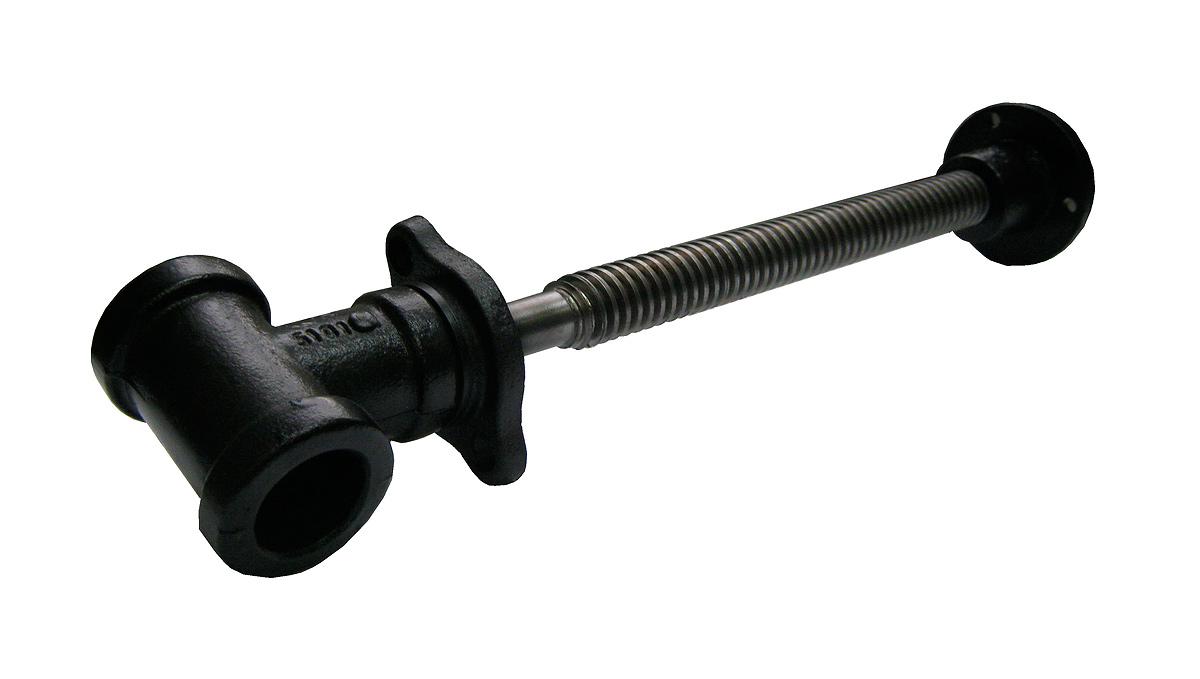

04.03.07.02.0.0 HV 580  2,5  Tr 24x5 435 264 25,60 €

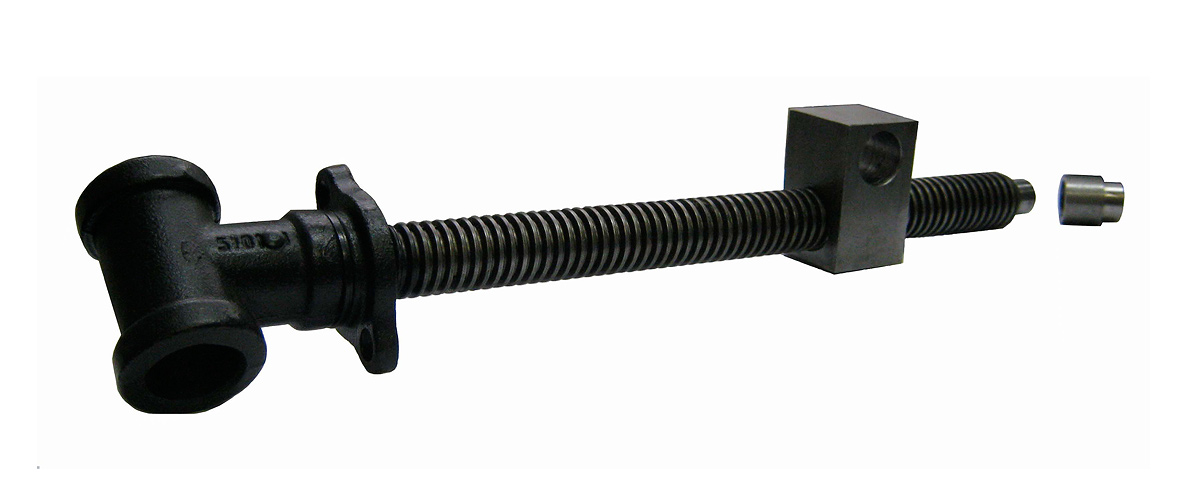

04.03.07.04.0.0 HV 582 3,0 Tr 28x5 LH 440+18 345 48,10 €

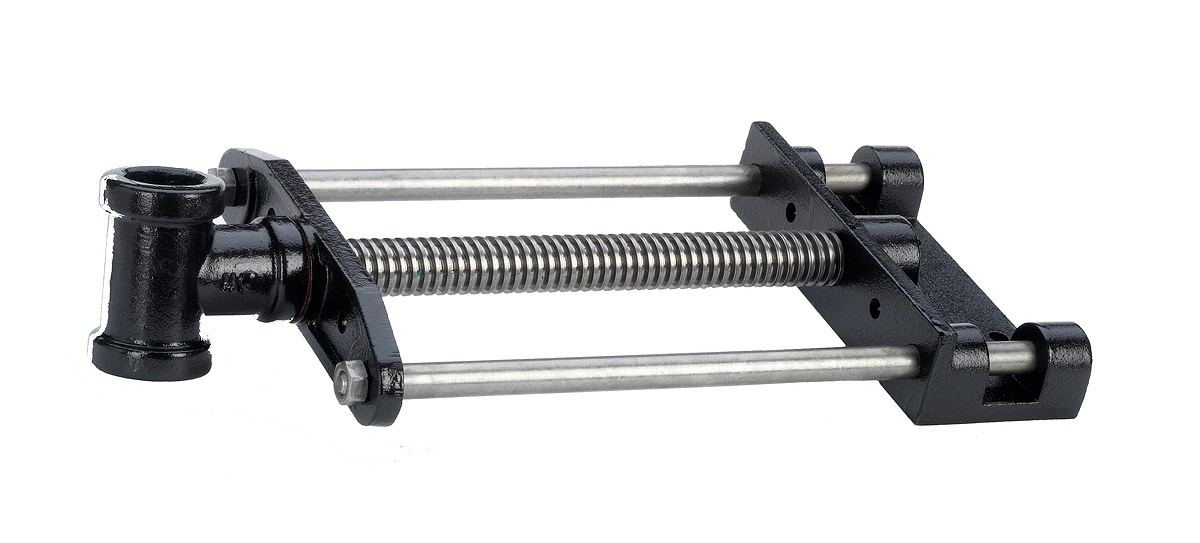

04.03.01.05.0.0    HV 515 4,0 Tr 24x5 390 205 37,40 €

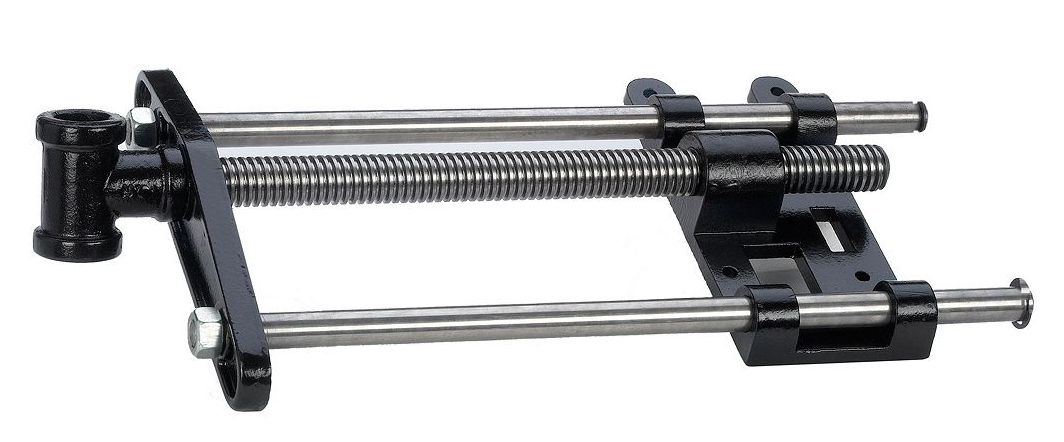

04.03.01.06.0.0 HV 516 8,3 Tr  28x5 550 335 57,00 €
