Universal joint holders, carvervice (CV KU V1, CVKUS V1, ...) - Kloub 100D, KU, KUS, KUP

Carvervice (type 100D)

  • universal clamping diametr 100 mm
  • arbitrarily adjustable positions
  • suitable for carvers and modellers

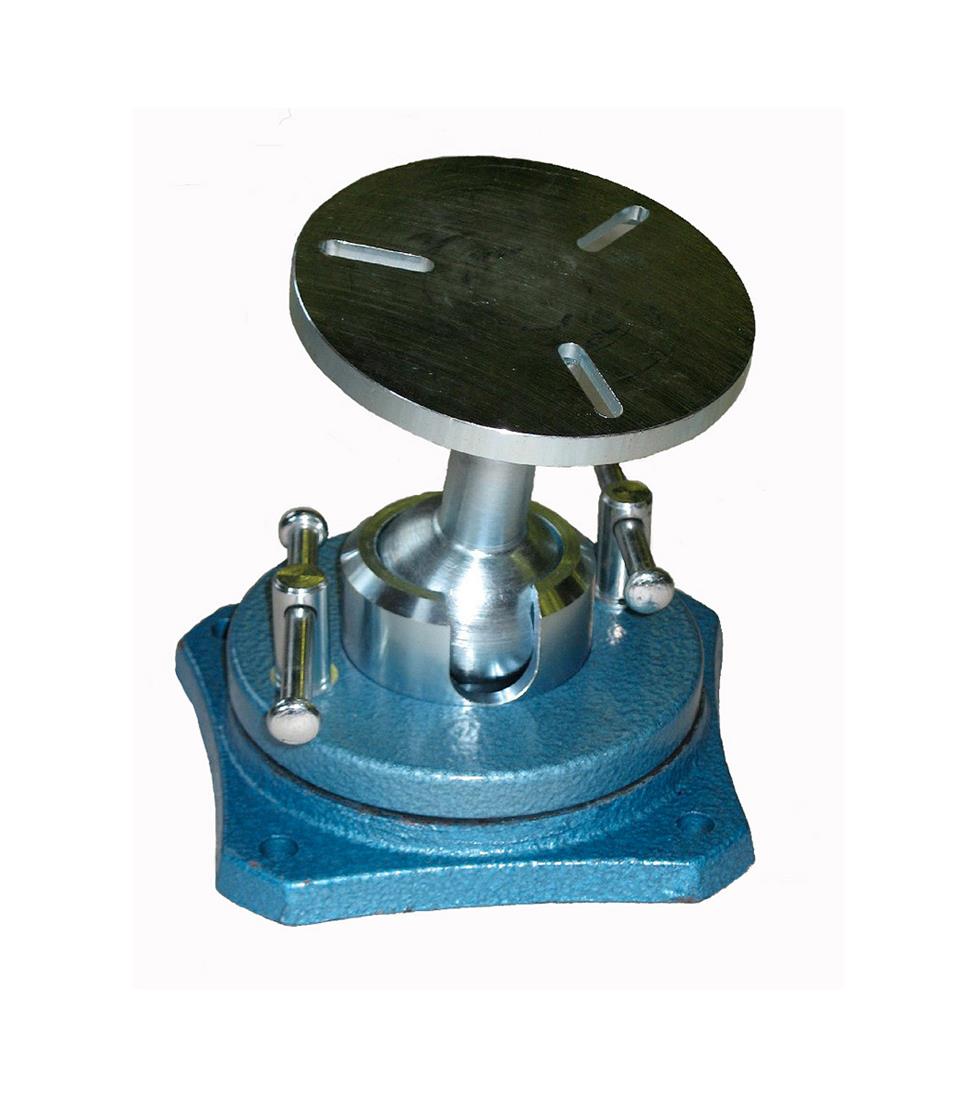

Kloub 100D - CV KU V1

  • fastening to table by screw

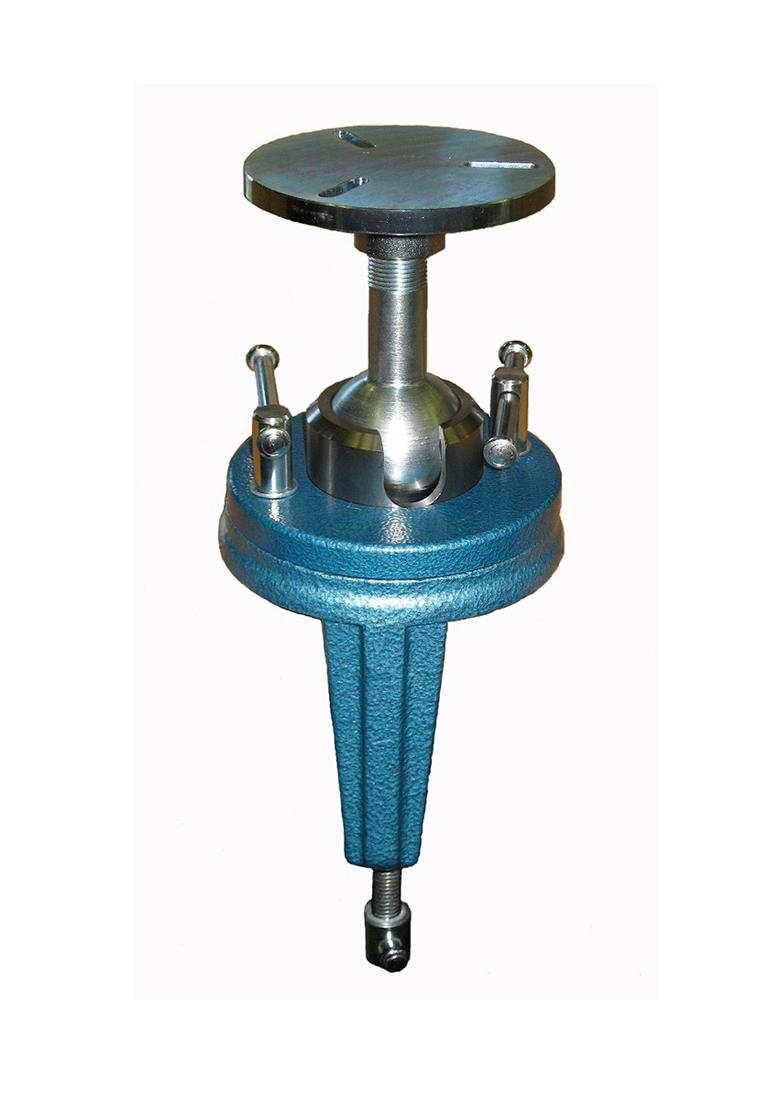

Kloub H 100D - CV KUS V1

  • fastening to table by clamp

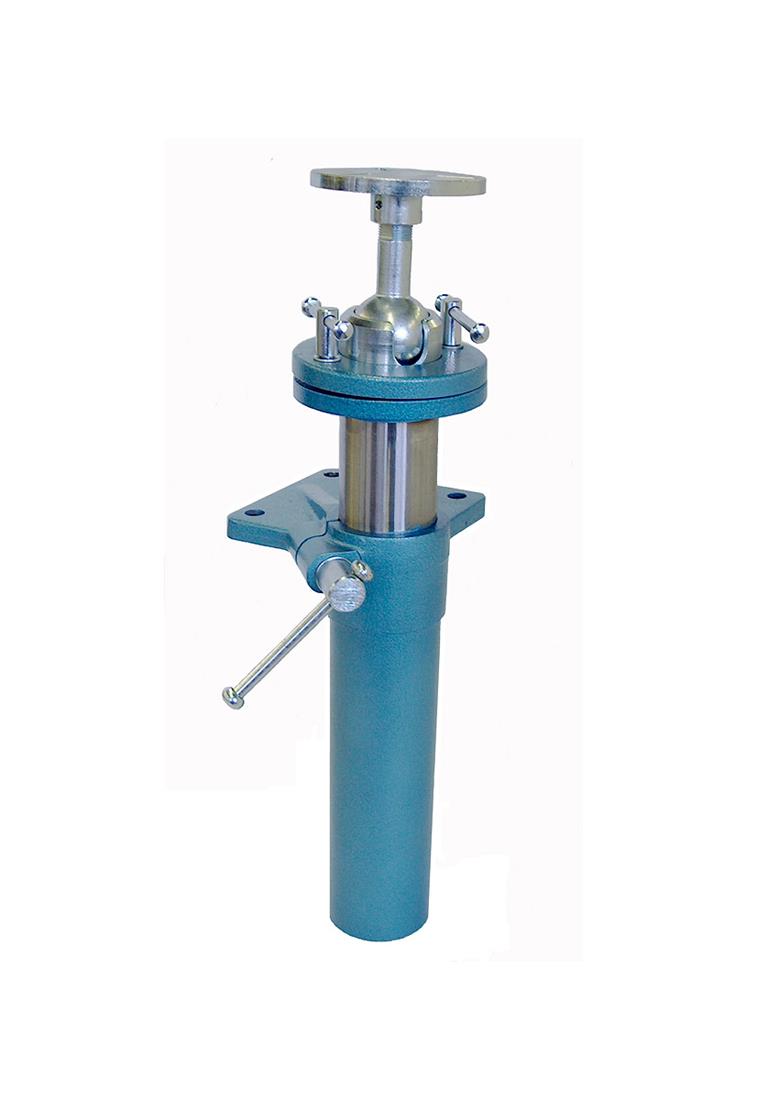

Kloub TD 100D

  • with telescopic holder

Kloub VPS 100D

  • with vice tipper

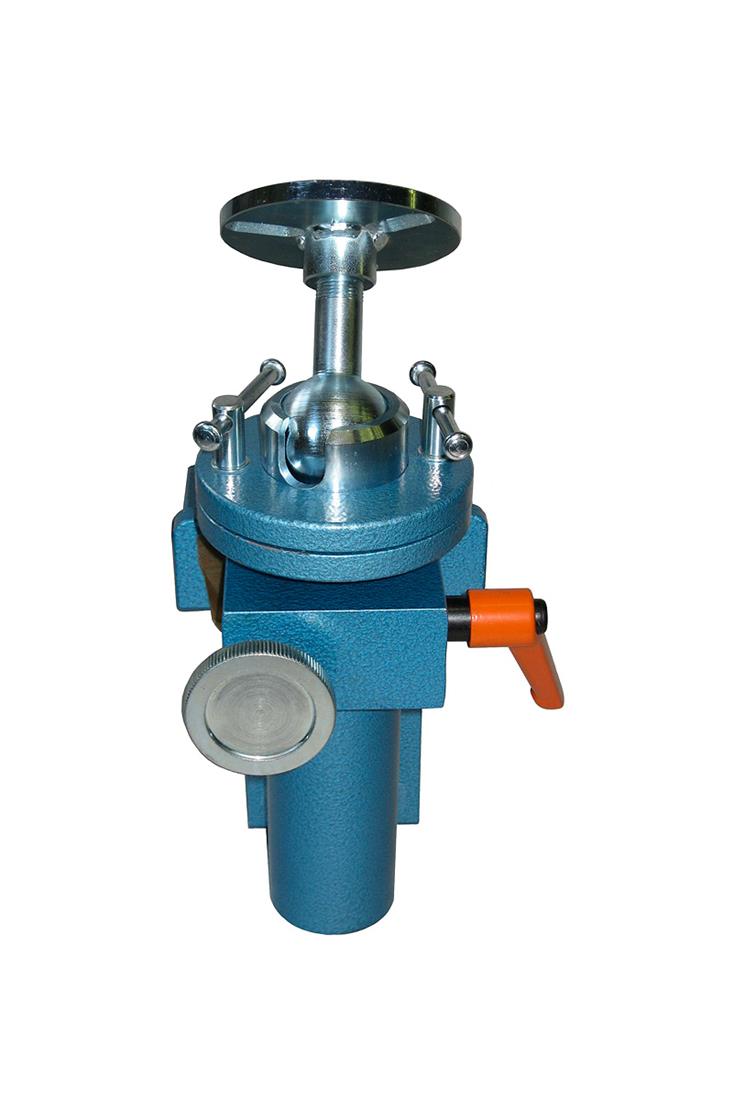

Kloub PTT 100D

  • with vice tipper with telescopic holder

Universal joint holders

  • widely applicable knuckle joint holder

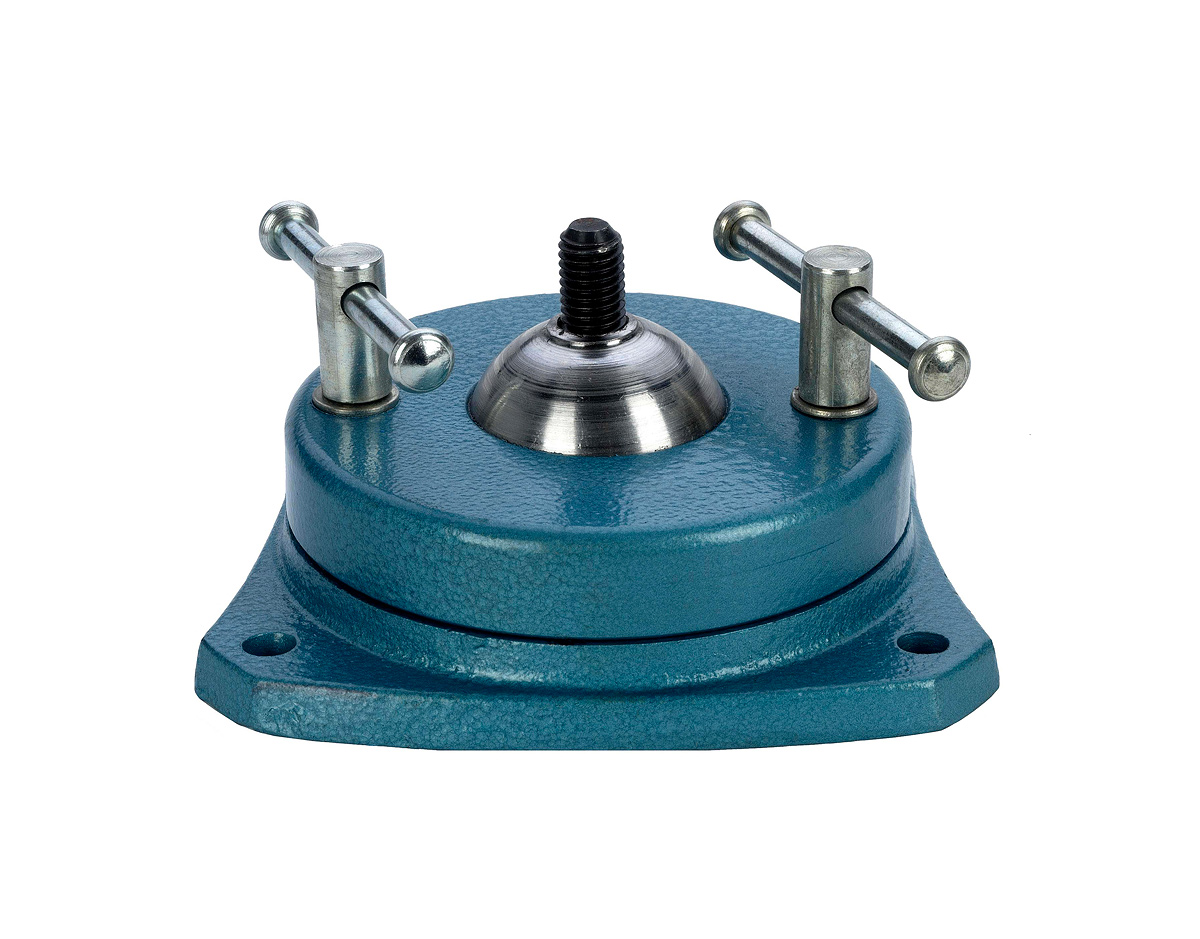

KU (type KU M12)

  • fastening to table by screws

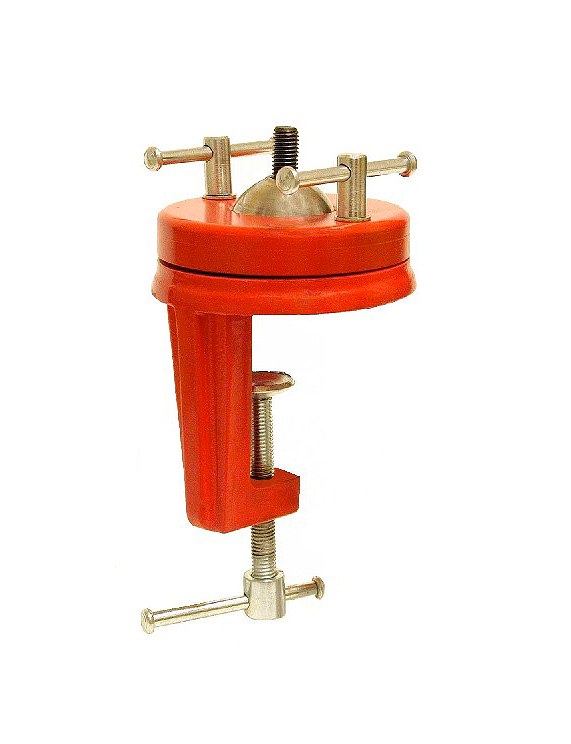

KUS (type KUS M8, KUS M12)

  • fastening to table by clamp
  • end thread M12 (KUS M12) or M8 (KUS M8)
  • joint allowing to topple   ±50° (KUS M12) or ±90° (KUS M8)
  • rotate ±360°

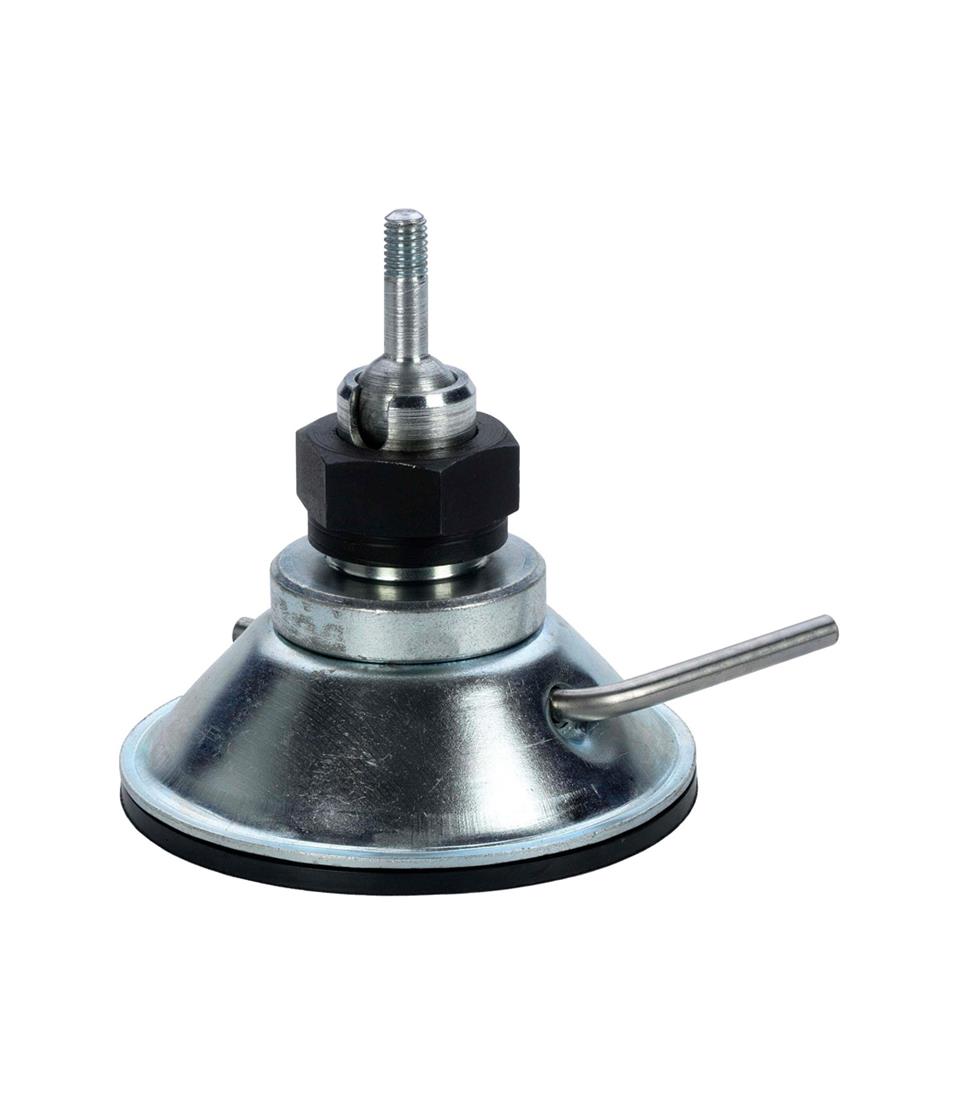

KUP (type KUP M8)

  • fastening to table by vacuum suction cup (diameter 105 mm)
Order No. Type Weight [kg] Width of jaws [mm] Price from [euro]
55501    Kloub 100D 3,4 - 85,70 €
55502  Kloub VPS 100D  7,2 - 349,10 €
55503 Kloub PTT 100D 13,2  - 433,40 €
55504 Kloub H 100D  3,8 70 93,70 €
55505  Kloub TD 100D  9,5 - 238,90 €
06.01.06.01.0.0 KU M12  2,6 - 25,00 €
06.01.05.01.0.0 KUS M8  0,4 45 12,40 €
06.01.07.01.0.0 KUS M12  2,9 75 35,30 €
06.01.04.01.0.0 KUP M8  0,6 - 20,30 €
 Указанные цены – ориентировочны и указаны без НДС, EXW Dobříš CZ.
