Machine vices pneu and hydraulic

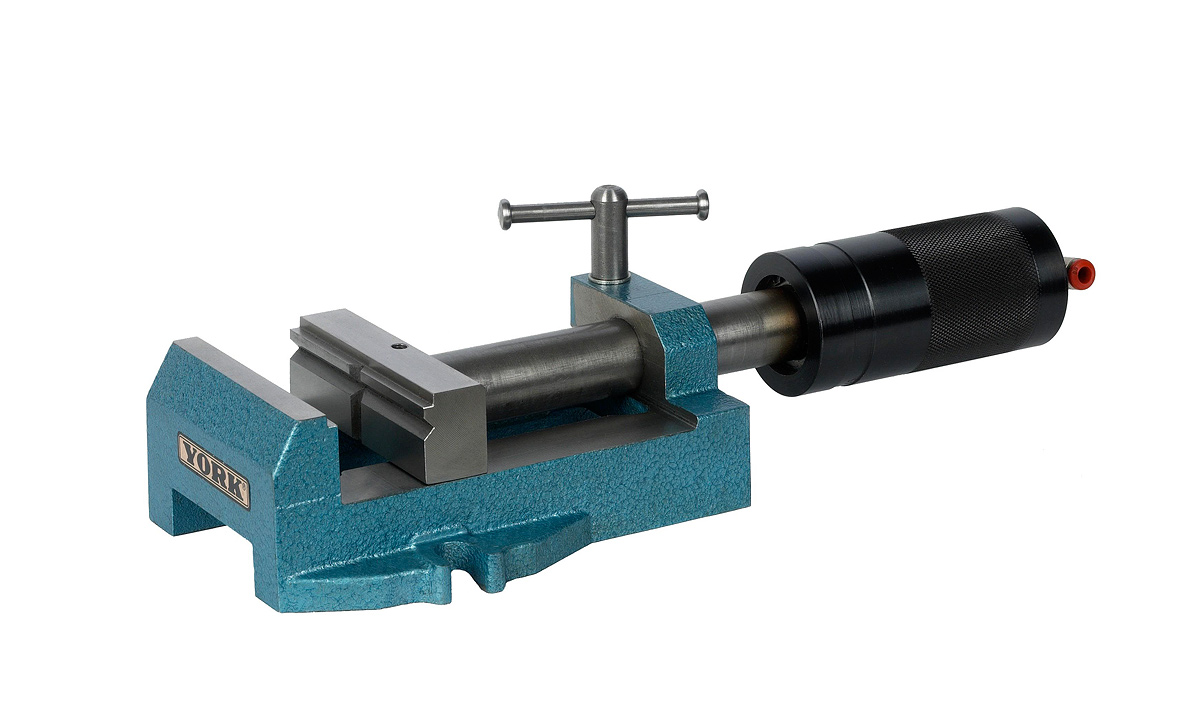

MBV 2000 P

  • handy pneumatic machine vice
  • quick-clamp system
  • pneumatic cylinder integrated into handle
  • preserved possibility of hand operating
  • covered main screw
  • moving jaw with longitudinal and traverse prism

Clamping force:

  • air pressure 0,8 MPa …....... 3,5 - 5,5 kN
  • stroke 4 mm

Optional accessory :

  • pneumatic controls assembly

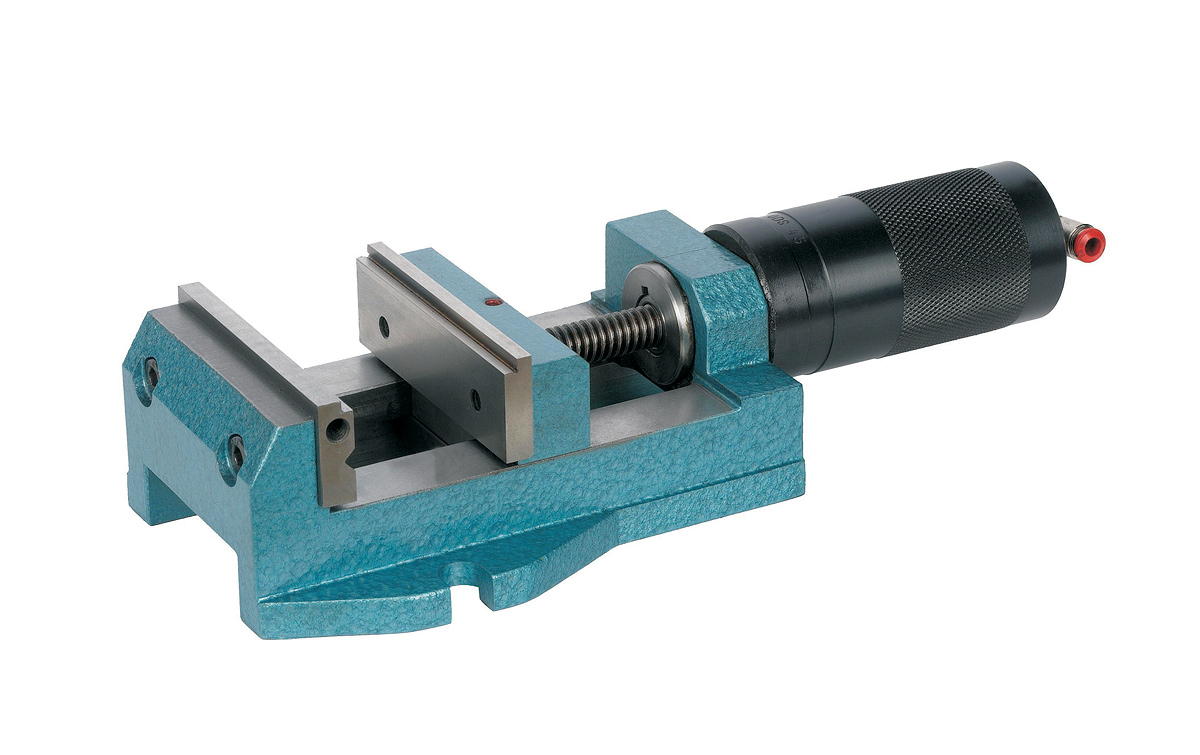

MBV 2001 P

  • handy pneumatic machine vice
  • jaws made of high-quality steel hardened to 45 HRC ± 5 HRC
  • pneumatic cylinder integrated into handle
  • preserved possibility of hand operating

Clamping force :

  • air pressure 0,8 MPa …....... 3,5 - 5,5 kN
  • stroke 4 mm

Optional accessory :

  • soft machinable jaws
  • pneumatic controls assembly

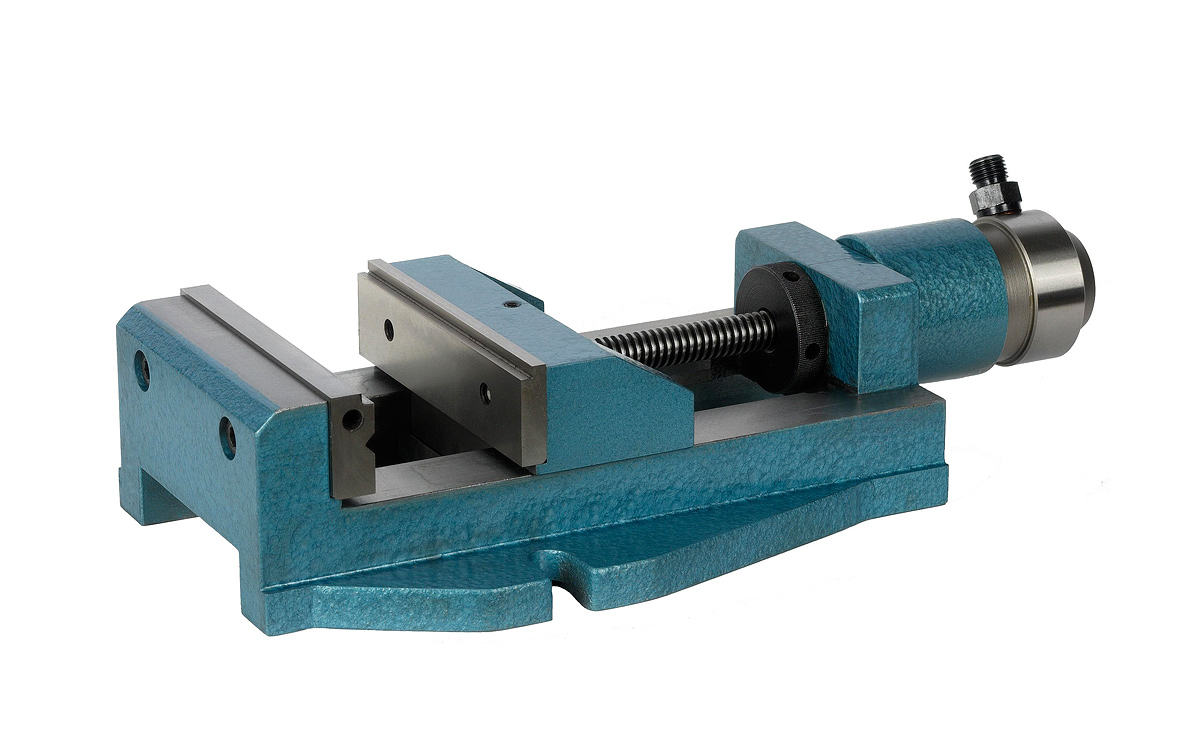

MBV 2001 H

  • handy hydraulic machine vice
  • jaws made of high-quality steel hardened to 45 HRC ± 5 HRC
  • basic setting by nut

Clamping force :

  • hydraulic pressure 20 MPa .... 8,5 - 18,5 kN
  • stroke 4 mm

Optional accessories – not included in price

  • soft machinable jaws
Order No. Type Hmotnost [kg] Width of jaws [mm] Length of fasten [mm] Height of jaws [mm] Clamping force [kN] Price from [euro]
03.03.01.01.0.0 MBV 2000 P 100 6,7  100  100 32 3,5 856,80 €
03.03.01.02.0.0    MBV 2001 P 100 100 100 34 3,5 949,20 €
03.03.01.02.1.0 MBV 2001 P 135 12,3    135 150 35 5,5 1036,40 €
02.03.01.01.0.0    MBV 2001 H 100 7,5 100 100  34 8,5 402,20 €
02.03.01.01.1.0  MBV 2001 H 135 11,8  135 150 35 18,5 498,80 €
Указанные цены – ориентировочны и указаны без НДС, EXW Dobříš CZ.
