Bench and hinged vices for fine works

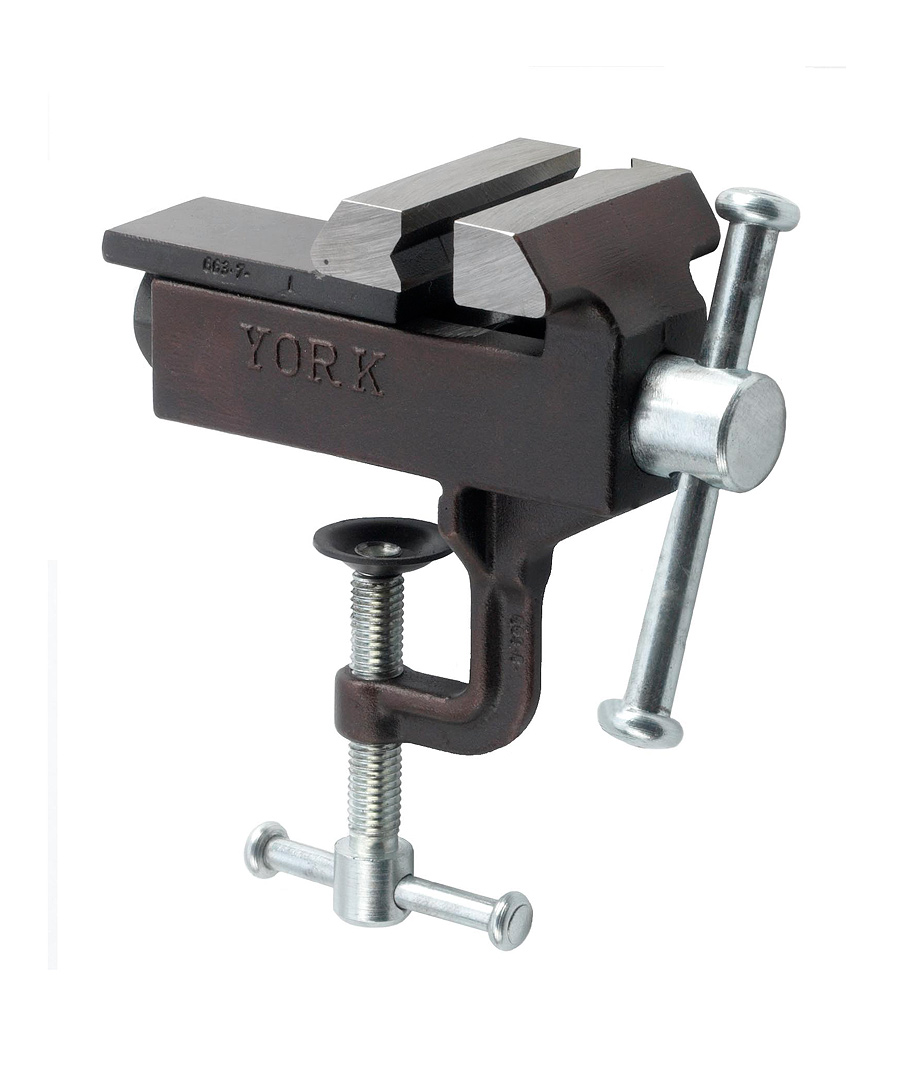

Minor US

  • all-steel vice for versatile use
  • fastening to table by clamp
  • prismatic jaw for easy clamping of profile material
  • max. table thickness: 30 mm
  • surface finish: blackened

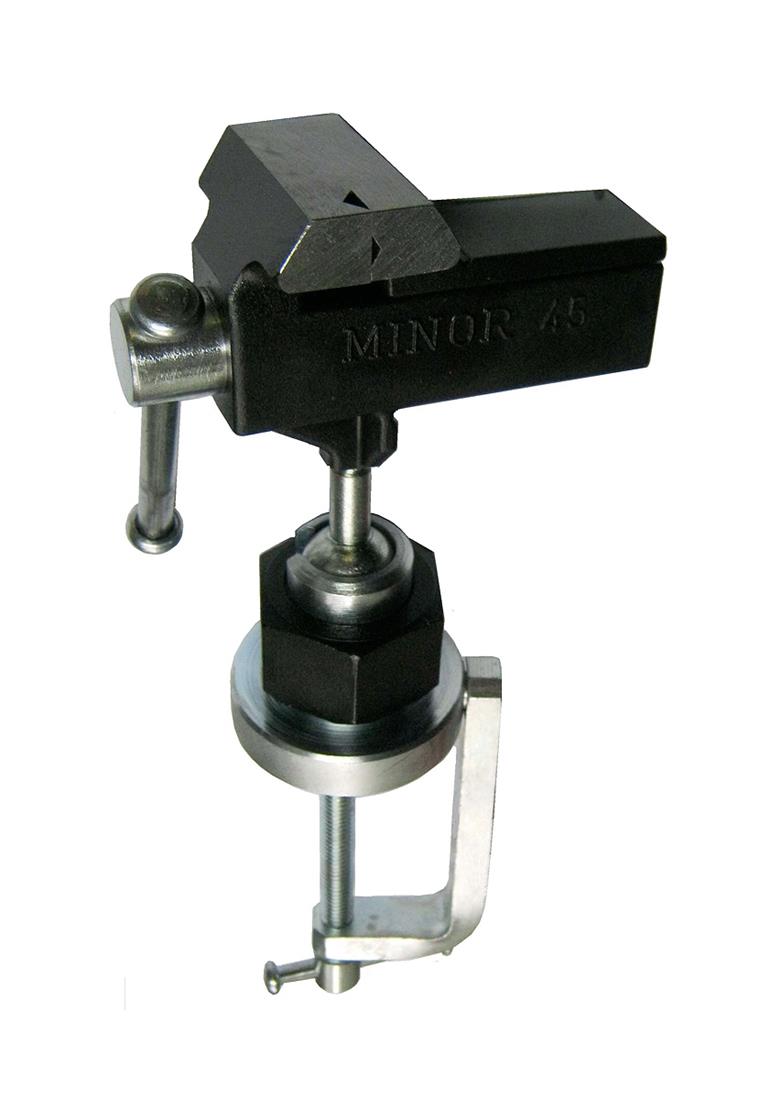

MINOR KUS

  • all-steel vice for versatile use
  • fastening to table by clamp
  • prismatic jaw for easy clamping of profile material
  • joint allowing to topple vice +/-90° and to rotate +/-360°
  • max table thickness: 45 mm
  • surface finish: blackened

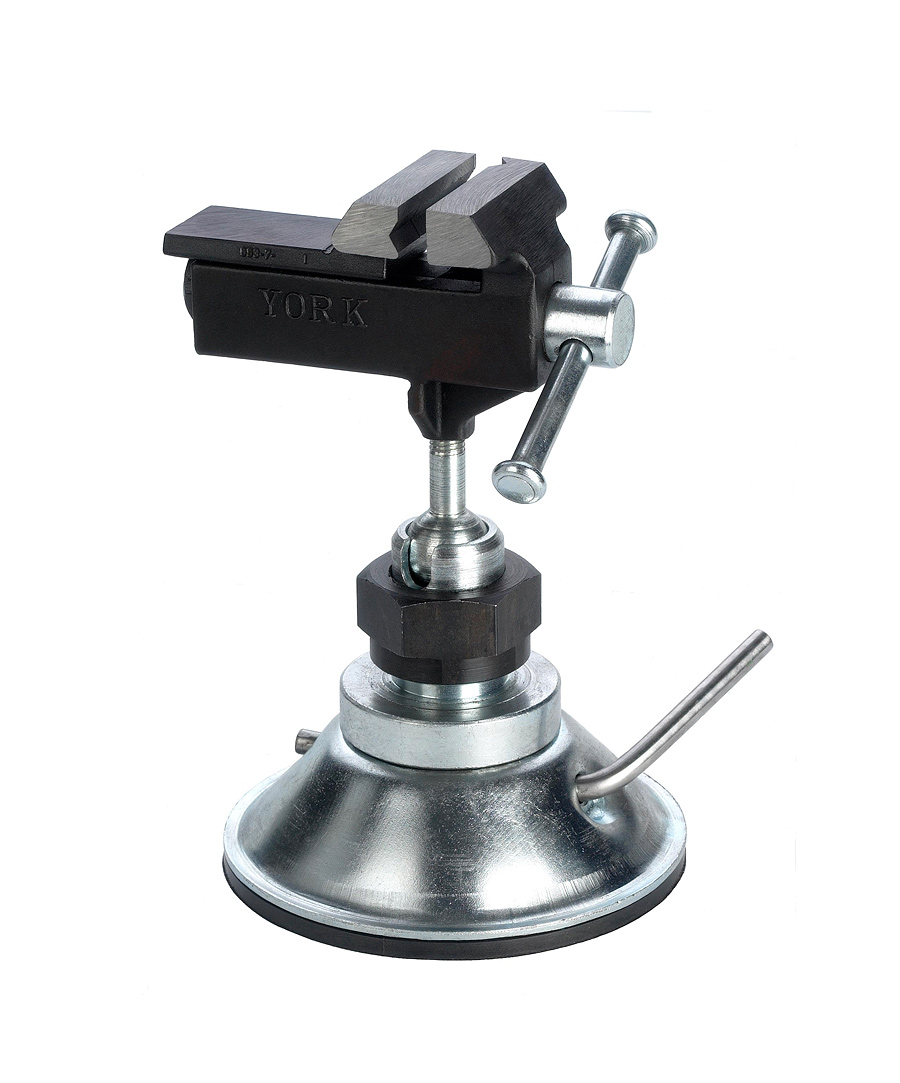

Minor KUP

  • all-steel vice for versatile use
  • fastening to table by vacuum suction cup (diameter 105 mm)
  • prismatic jaw for easy clamping of profile material
  • joint allowing to topple vice +/-90° and to rotate +/-360°
  • surface finish: blackened
Order No. Type Weight [kg] Width of jaws [mm] Length of fasten [mm] Price from [euro]
01.04.01.01.0.0 Minor 45 US
0,6 45 50  28,10 €
01.04.03.01.0.0 Minor 45 KUS  0,9 45 50  39,50 €
01.04.02.01.0.0 Minor 45 KUP  1,0 45 50  48,20 €
Указанные цены – ориентировочны и указаны без НДС, EXW Dobříš CZ.
