Wood vices - type HVR, HVRQ (Quick), HV584, Moxon-US500

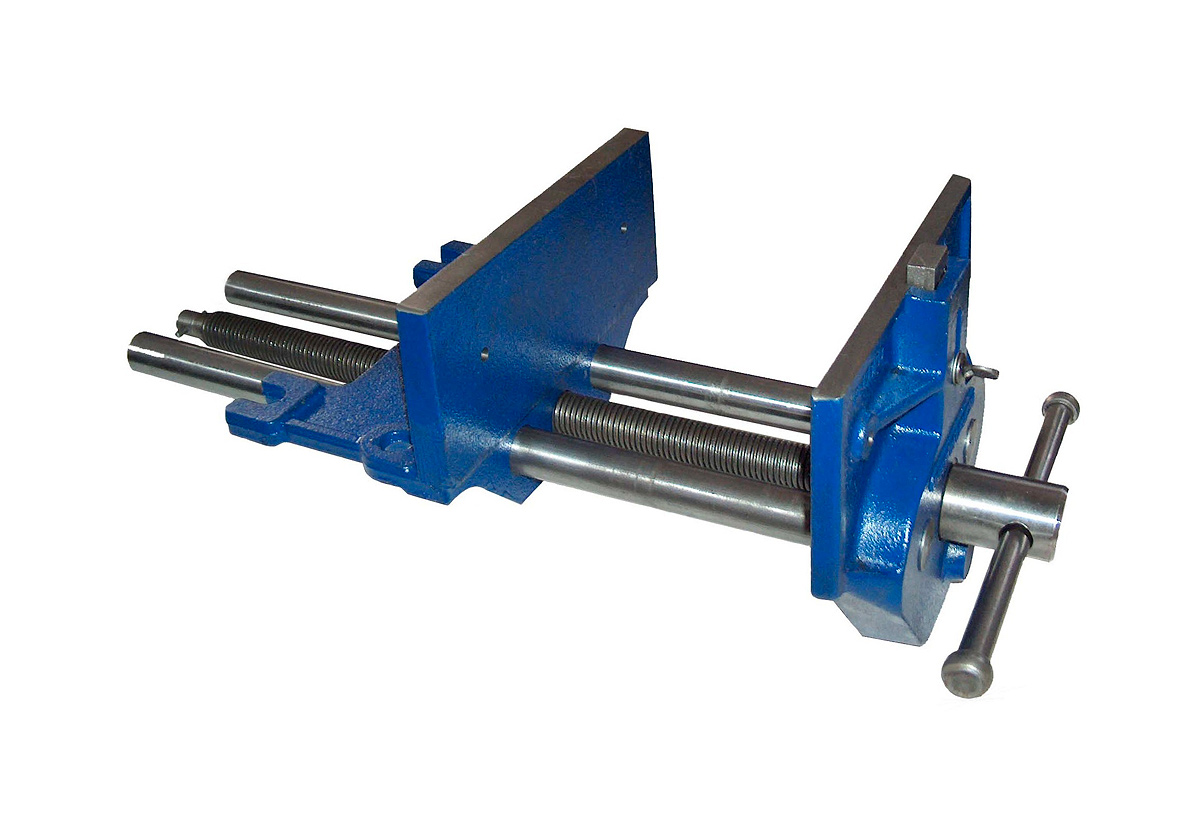

HVR

  • traditional workbench spindels for wood-work tables
  • high quality trapezoidal thread
  • precision rod guiding

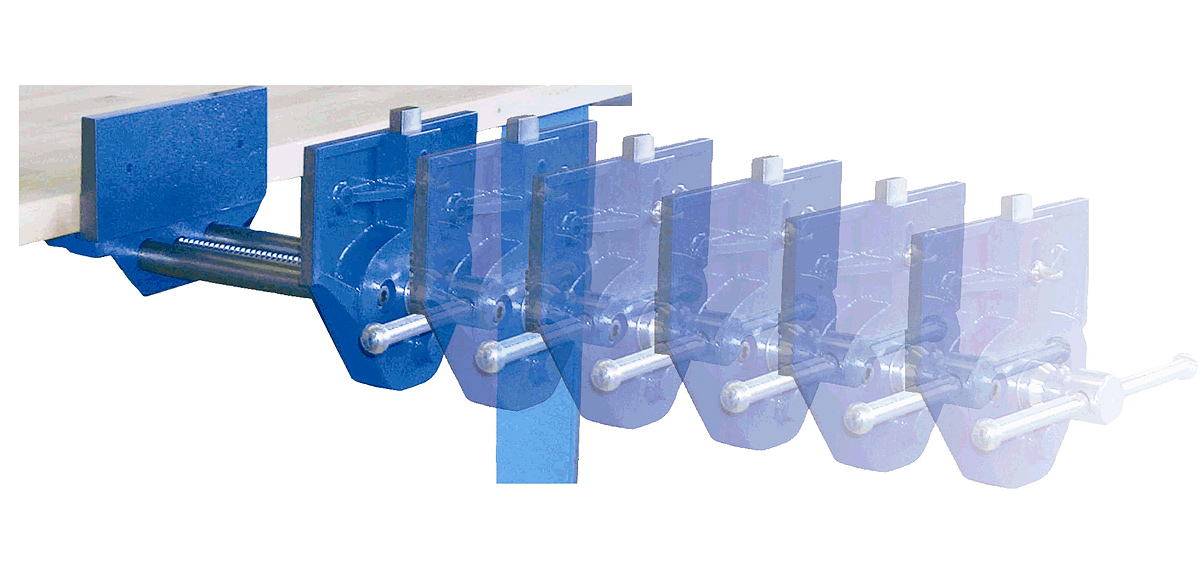

QUICK (HVRQ)

  • QUICK system - fast opening and clamping without the use of the main spindle
  • workbench spindels for wood-work tables with double guideway
  • high quality trapezoidal thread
  • precision rod guiding

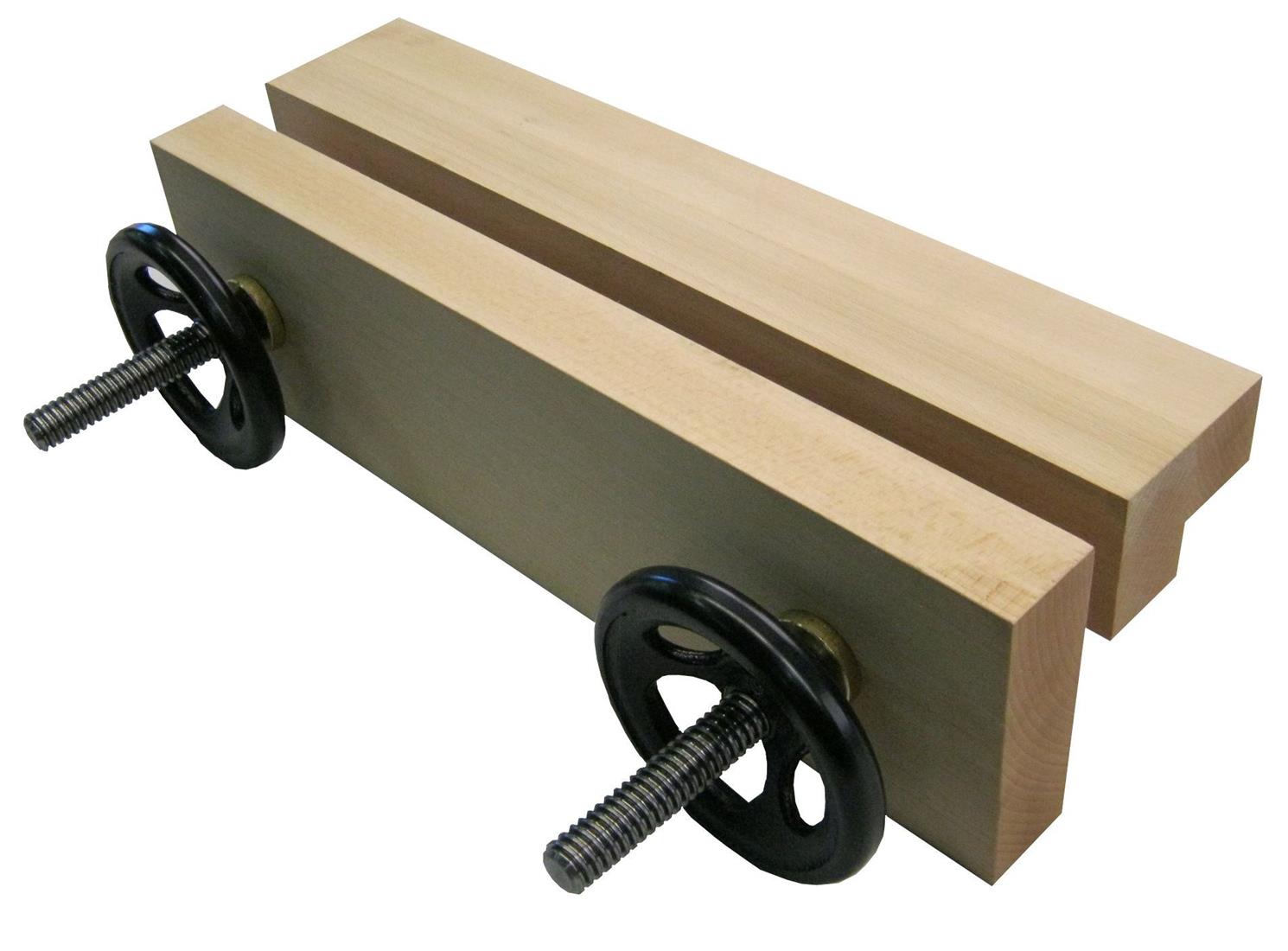

Moxon US500

  • workbench spindles - speed wheels with a thread length of 240 or 500 mm
  • type Moxon - with clamping wood

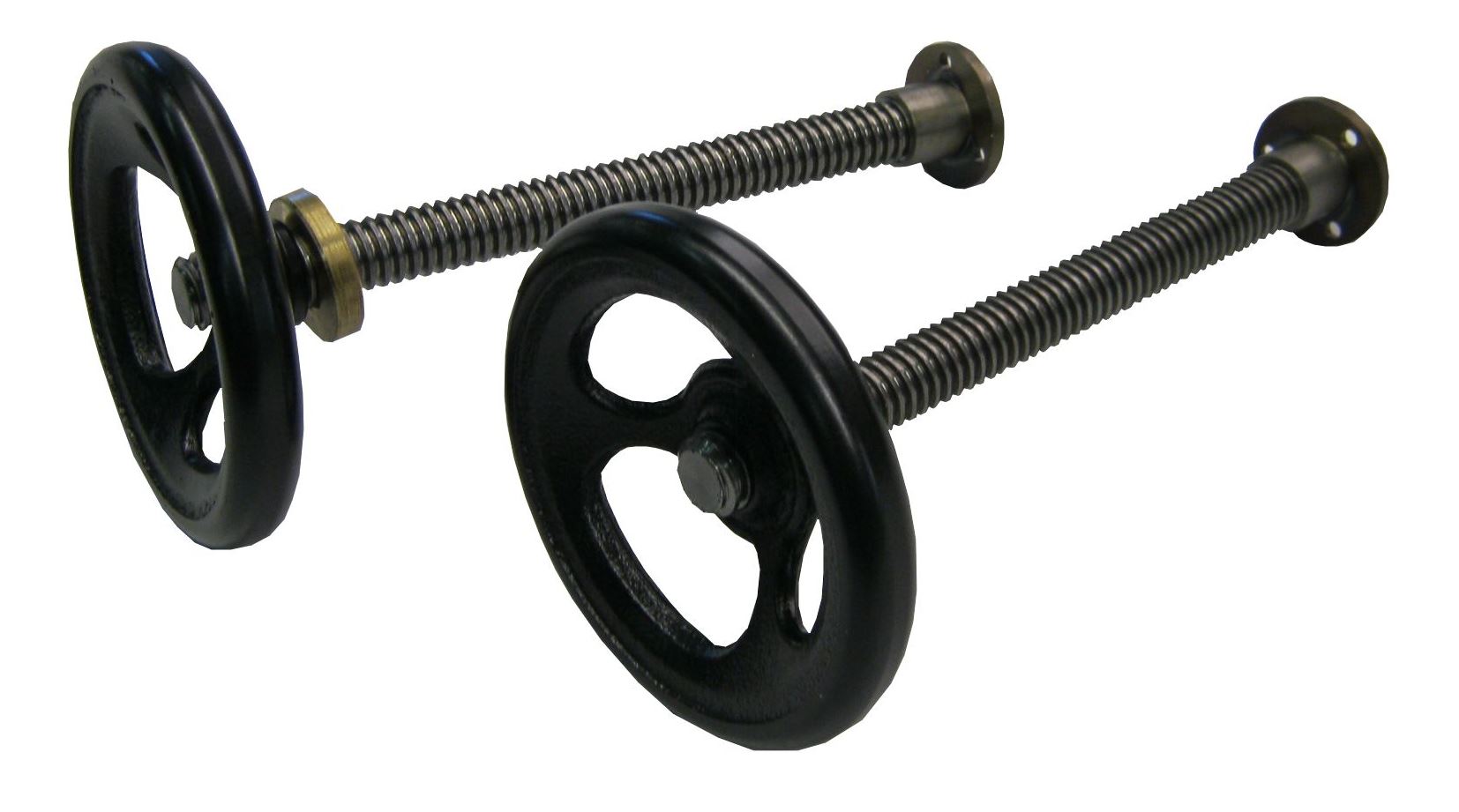

  • type US500 - without wood clamps

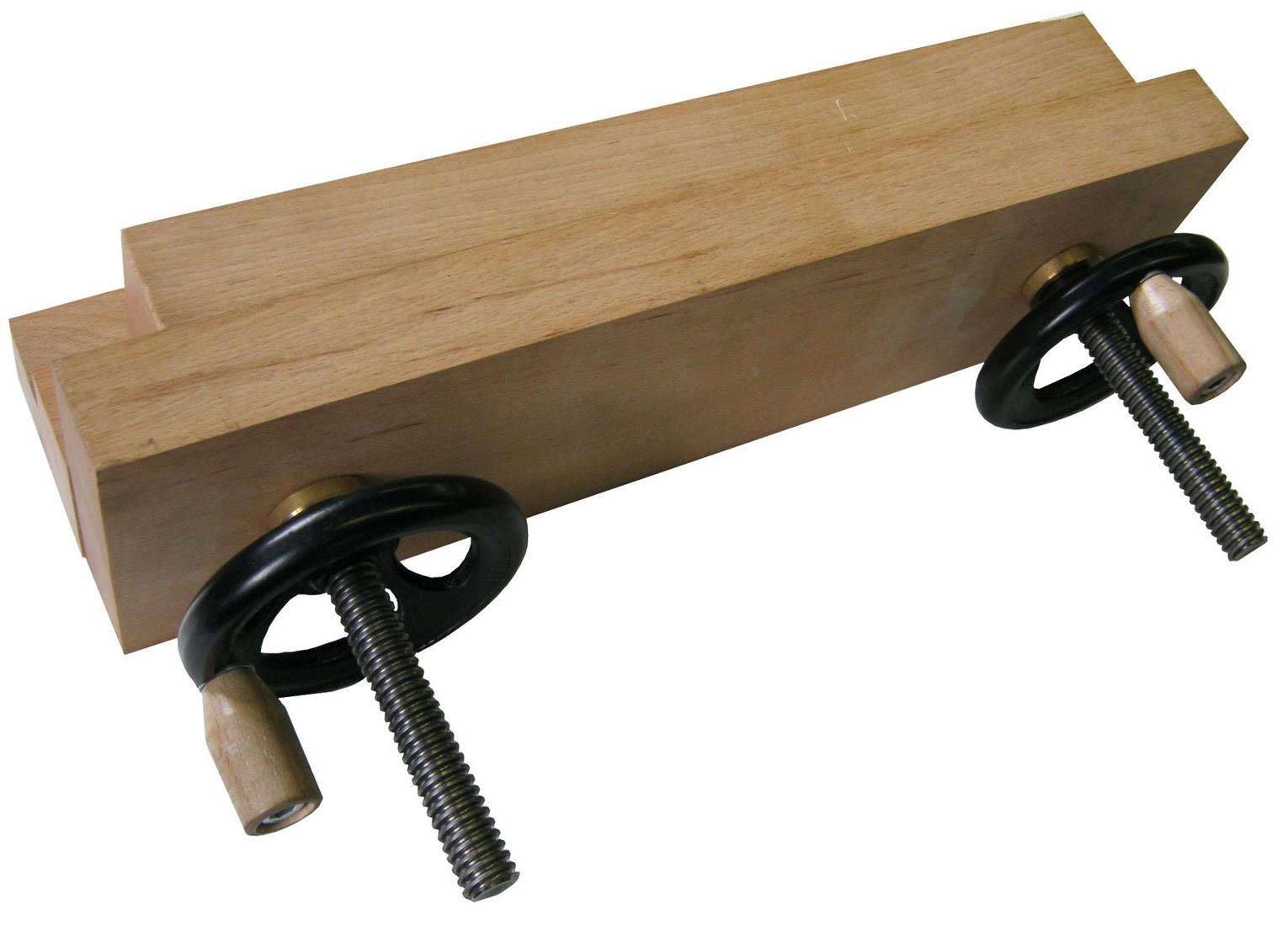

  • type Moxon WH500 - with clamping wood
    - speed wheels with handle
    - possibility of using the handle also for others types

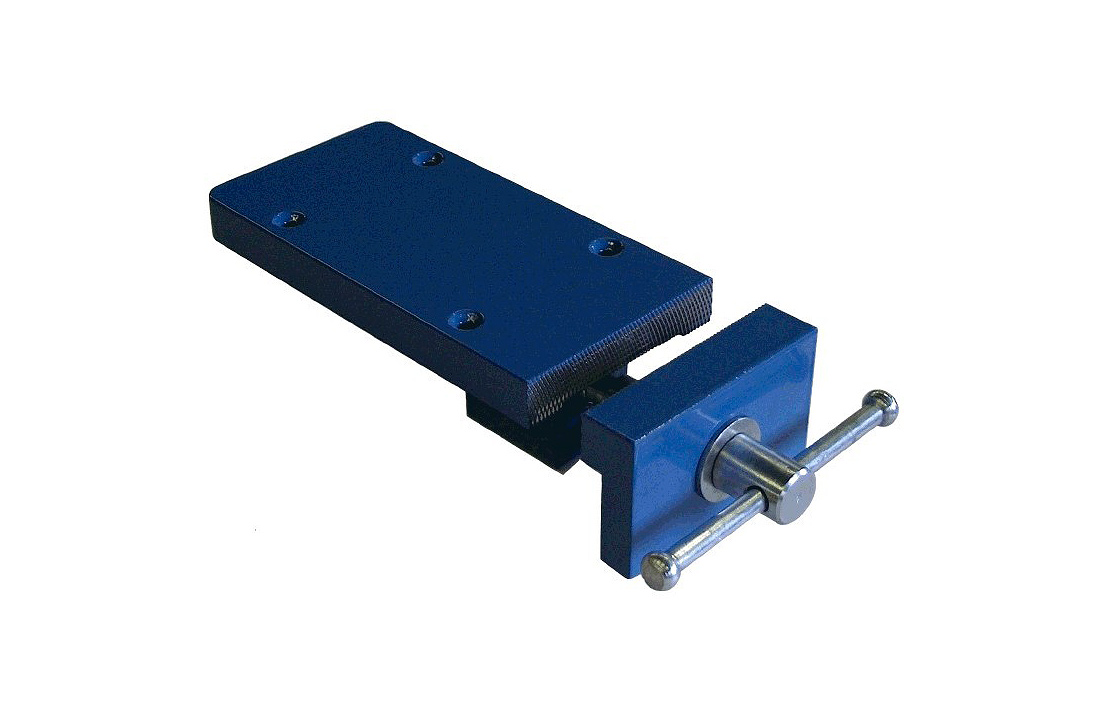

Bench planer vices (type HV 584)

  • bench vice, designed for submering into the workbench
  • fitted vice does not reduce the bench top work area
  • high grade steel vice corpus
  • sharp cycloidal grooving
  • high quality trapezoidal thread
  • precision rod guiding
  • clamping jaw backlash adjusting screws



Order No. Type Weight [kg] Thread [mm] Total length
 [mm]
Working length
 [mm]
Width of jaws [mm] Thread length
 [mm]
Price from [euro]
04.03.01.10.0.0  HVR 801 9,0 Tr 24×5 402 205 -
-
87,30 €
04.03.01.11.0.0 HVR 802 15,6  Tr 24×5 552 340 -
-
123,20 €
04.03.01.12.0.0 HVR 803 17,0 Tr 24×5 604 390 -
-
133,40 €
04.03.01.10.1.0 HVRQ 801 9,4 Tr 24×5 402 200 -
-
127,90 €
04.03.01.11.1.0 HVRQ 802  16,0 Tr 24×5 552 335 -
-
174,10 €
04.03.01.12.1.0   HVRQ 803 17,4 Tr 24×5 604 385 -
-
198,80 €
59101
Moxon US500-24
7,45
Tr20x4
-
120
500
240
213,10 €
59102
Moxon US500-50
8,54
Tr20x4
-
380
500
500
230,50 €
59201
US500-24
2,73
Tr20x4
-
-
-
240
144,90 €
59202
US500-50
3,82
Tr20x4
-
-
-
500
164,40 €
59103
Moxon WH500-24 7,50
Tr20x4
-
120
500
240
218,00 €
04.03.07.01.0.0 HV 584 5
Tr 18×4 250
90
-
-
122,20 €
The stated prices are for orientation only and do not include VAT, the condition: EXW Dobříš CZ.
