Joinery tools (multiple clamp battens, ...) - VLS, HUK, T

VLS

  • multiple clamp gluing batten boards
  • quick and simple assembly
  • flatness of edge-glued batten boards is maintained by permanent pressure of clamping rods
  • clamping by high-quality trapezoidal screws
  • maximum batten board thickness 50 mm, with underlay 25 mm
  • maximum glued board width 120 cm
  • wide scope of use

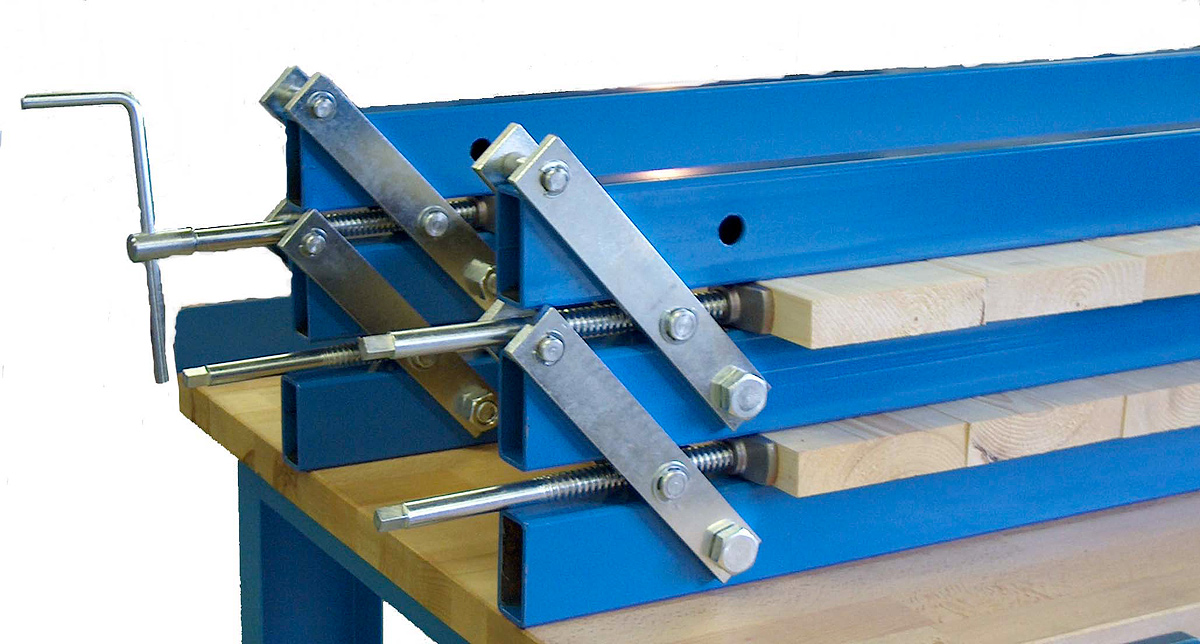

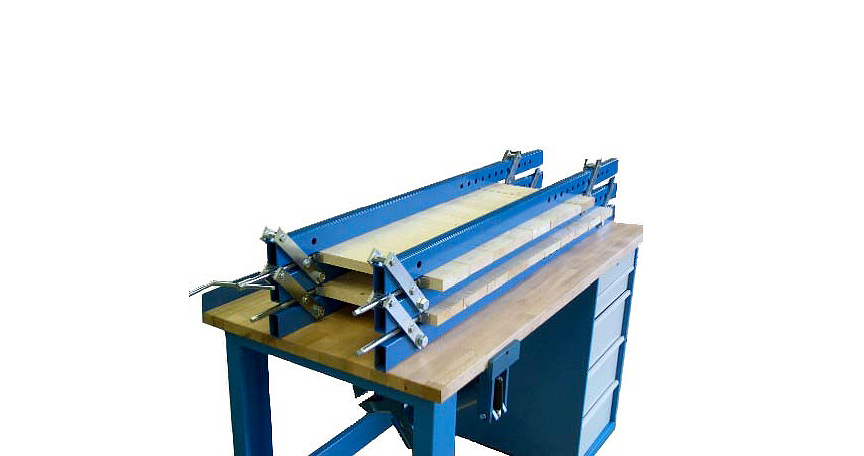

VLS Standard

  • steel clamping rods with a special surface finish
  • four rods + two clamping mechanisms (two clamps and two stops) + crank

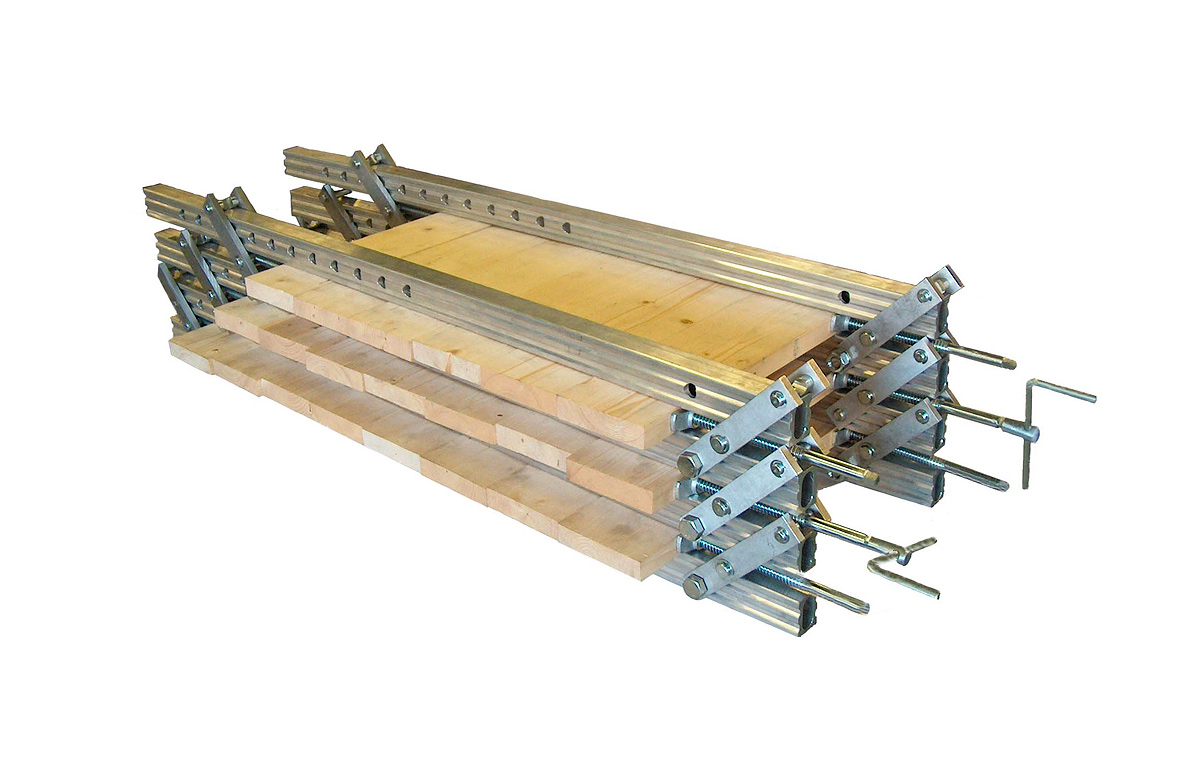

VLS 100 LUX

  • aluminium alloy section clamping bars
  • four rods + two clamping mechanisms (two clamps and two stops) + crank
  • max firm clamping at low weight

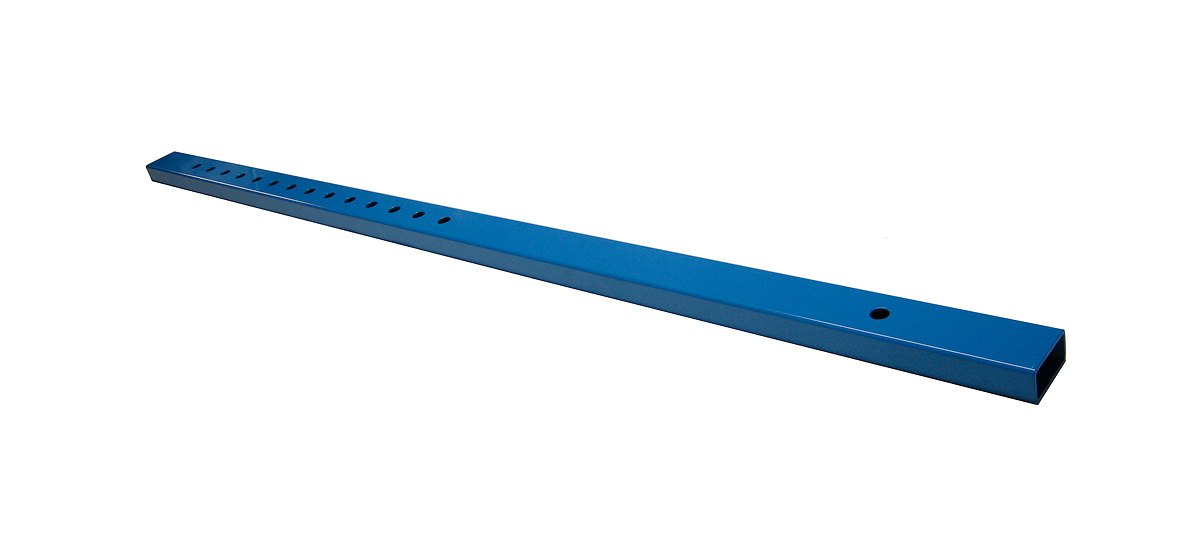

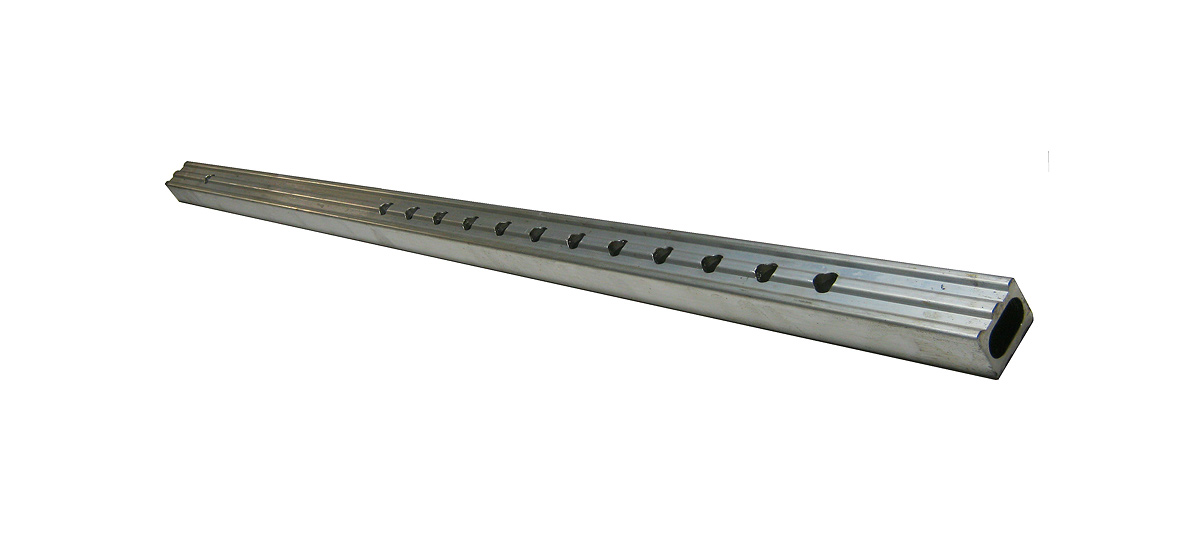

T

  • single rod

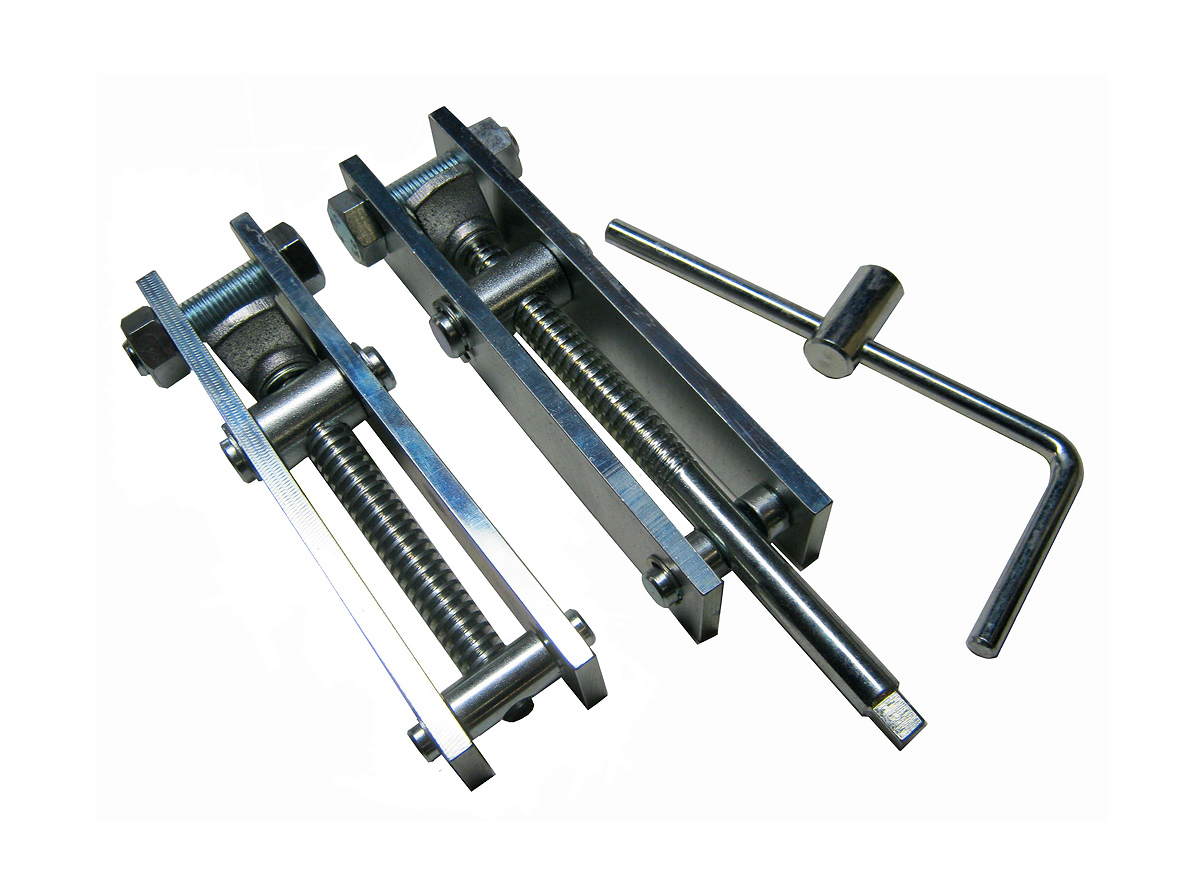

HUK

  • clamping mechanism (clamp and stop) + crank
Order No. Type Weight [kg] Total length
 [mm]
Working length
 [mm]
Price from [euro]
04.03.03.01.0.0 VLS 120 Standard  28,0 1500 120 271,50 €
04.03.03.02.0.0  T 120 Standard 5,6 1500 120 30,50 €
04.03.03.03.1.0  VLS 100 Lux 16,0 1250 100 286,30 €
04.03.03.04.1.0 T 100 Lux 2,8 1250 100 33,30 €
04.03.03.09.1.0  HUK Standard 2,8 - - 67,70 €
04.03.03.10.1.0    HUK Lux 2,5 - - 67,70 €
Указанные цены – ориентировочны и указаны без НДС, EXW Dobříš CZ.
