Joinery tools (joinery handscrews, attachments, ...) - TZ

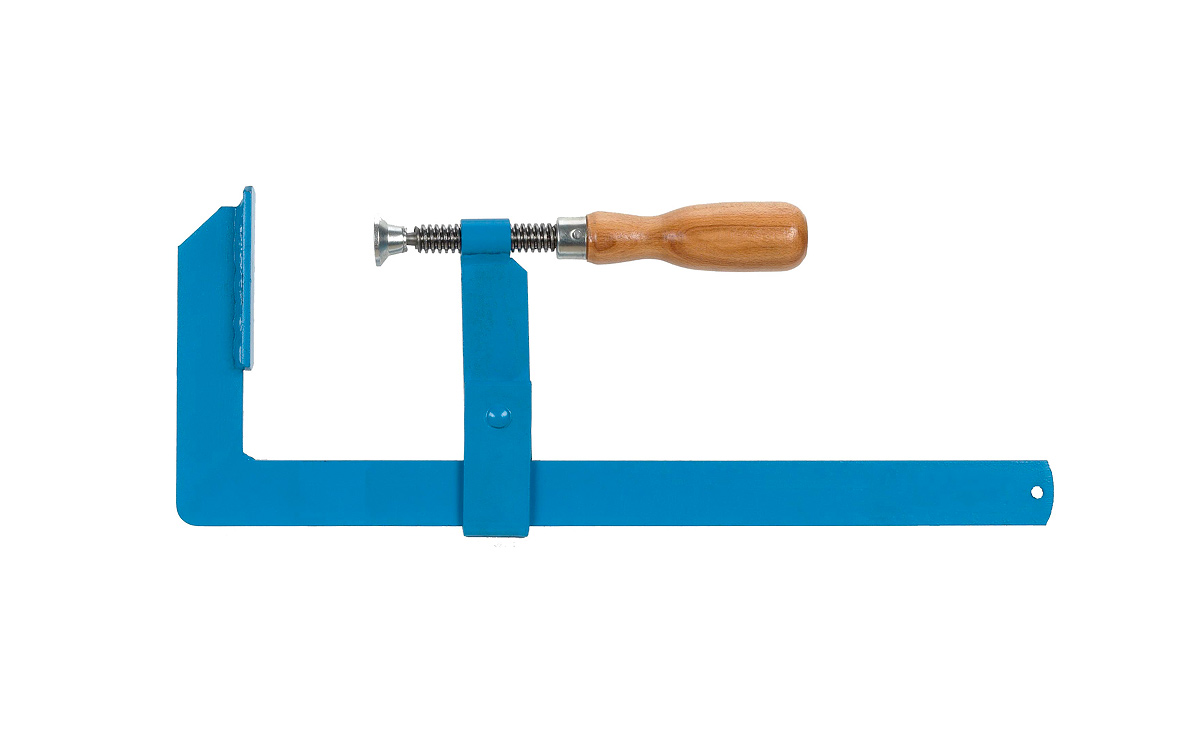

TZ

  • joinery handscrews made of high quality steel
  • rolled trapezoidal thread Tr 18x4, 80mm long
  • tilting support at the end of the screw for accurate clamping
  • handle made of high quality beech wood
  • easy handling

TZ BS

  • press auxiliary screw for side fixing

Optional accessories – not included in price :

  • available for all TZ handscrews
  • optional rubber top pieces to prevent marbs on the clamped pieces

TZ ND

  • for tilting support

TZ NH

  • for fixed support
Order No. Type Weight [kg] Length of fasten [mm] Total length
 [mm]
Throat depth
 [mm]
Price from [euro]
04.01.01.01.0.0 TZ 15 1,4 150 258 80 28,90 €
04.01.01.02.0.0 TZ 20  1,5  200 308 80 29,20 €
04.01.01.03.0.0 TZ 25 1,7  250 358 105 29,60 €
04.01.01.04.0.0 TZ 30 2,1  300 415 115 30,10 €
04.01.01.05.0.0 TZ 35 2,2  350  475 115 31,90 €
04.01.01.06.0.0 TZ 40 2,7  400 540 120 32,90 €
04.01.01.07.0.0 TZ 50   3,3 500 615 165 35,60 €
04.01.01.08.0.0   TZ 60 3,6  600 720 165 37,70 €
04.01.01.09.0.0  TZ 70 3,8  700 830 165 38,70 €
04.01.01.10.0.0 TZ 80  4,4  800 935 165 41,10 €
04.01.01.11.0.0 TZ 100 1000 1135 165 42,20 €
04.01.01.12.0.0 TZ 125  5,6  1250 1380 165 44,60 €
04.01.01.13.0.0 TZ 150  6,3 1500 1635 165 48,10 €
04.01.01.14.0.0  TZ 175  1750 1890 165 51,40 €
04.01.01.15.0.0 TZ 200 7,7 2000 2135 165 54,40 €
04.01.01.16.0.0 TZ 220  2200  8,3 2335 165 59,50 €
04.01.01.17.0.0    TZ 250 9,3  2500 2645 165

61,90 €

06.02.02.01.0.0 TZ BS  0,4   - - - 17,80 €
06.02.01.01.0.0  TZ ND - - - - 3,20 €
06.02.01.02.0.0 TZ NH - - - - 3,20 €
The stated prices are for orientation only and do not include VAT, the condition: EXW Dobříš CZ.
