Joiner’s accessories (bench dogs, ...) - BD599, BDS599, SK598, DR599

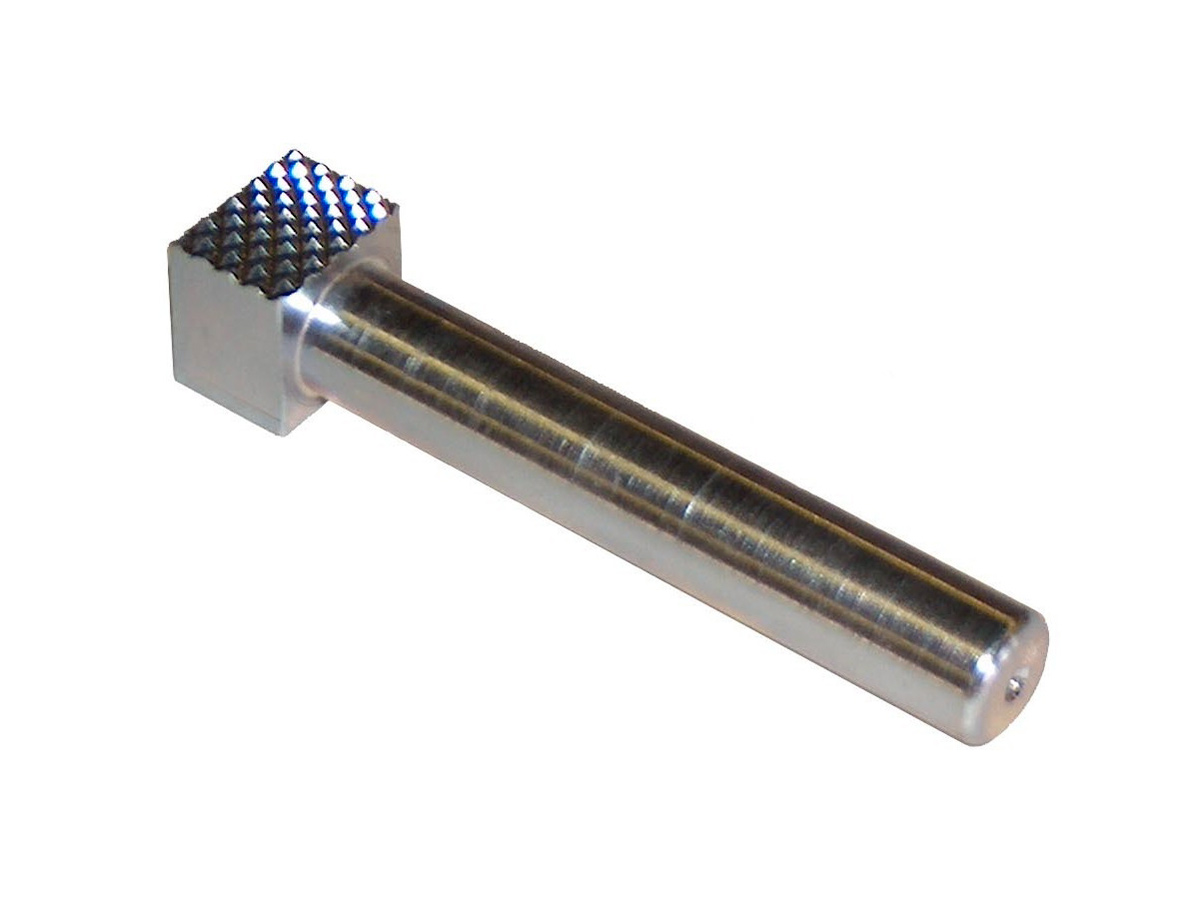

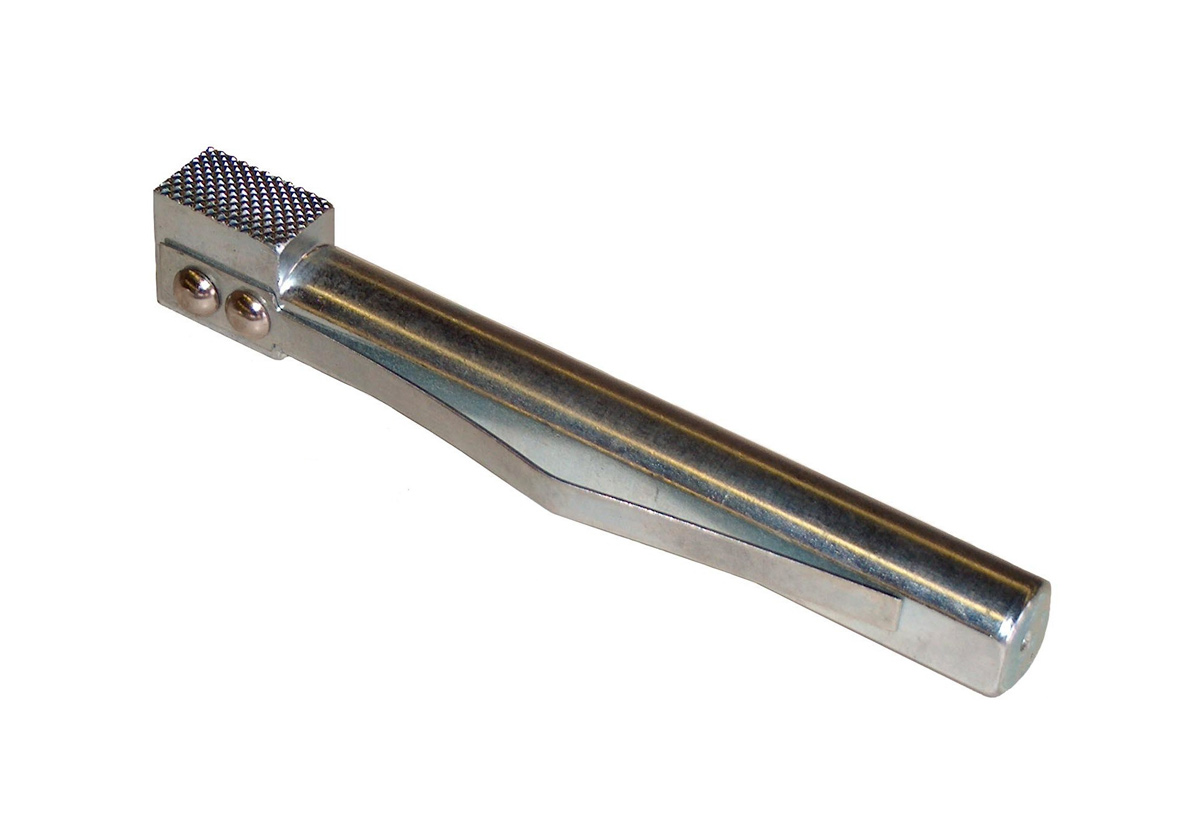

Bench dog (type BD 599-03, BD 599-04)

  • bench planer stopper
  • high-grade steel corpus
  • sharp cycloidal grooves
  • lateral safety spring
  • galvanised surface finish
  • optional custom dimensions

Bench hold (type SK 598, SK 598S)

  • holes in the bench must be drilled 1 mm bigger than the hook-nail shank diameter

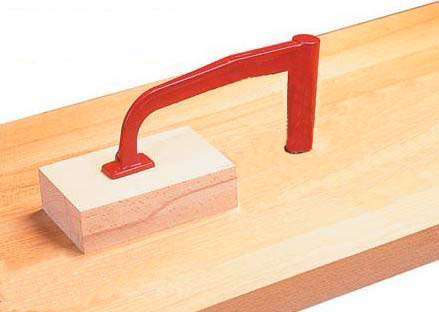

SK 598

  • traditional bench planer hammered holder

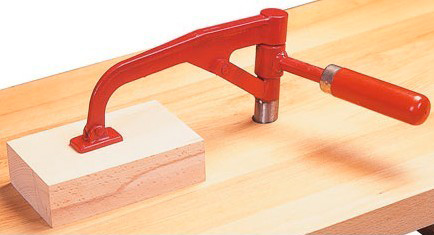

SK 598S

  • traditional bench planer screw-on holder
  • 15 mm clamping vertical travel
  • simple clamping with a lever within the range 10-15 mm

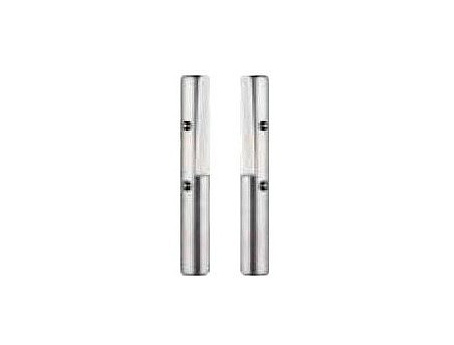

Bench dog Alu (type BDK 599-16)

  • robust duralumin circular bench dog
  • locking with two sprung balls
  • skew-cut front rest surface to prevent accidental vertical release

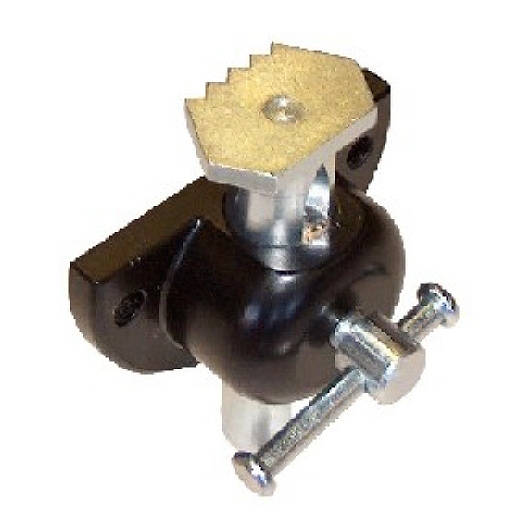

Bench hook (type BDS 599-10)

  • adjustable bench  planer stopper
  • high-grade steel corpus
  • when sunk it does not reduce the bench work surface
  • sharp 90° grooving
  • 0 – 50 mm height adjustable with screw-and-tackle
  • surface finish – galvanising + quality powder painting

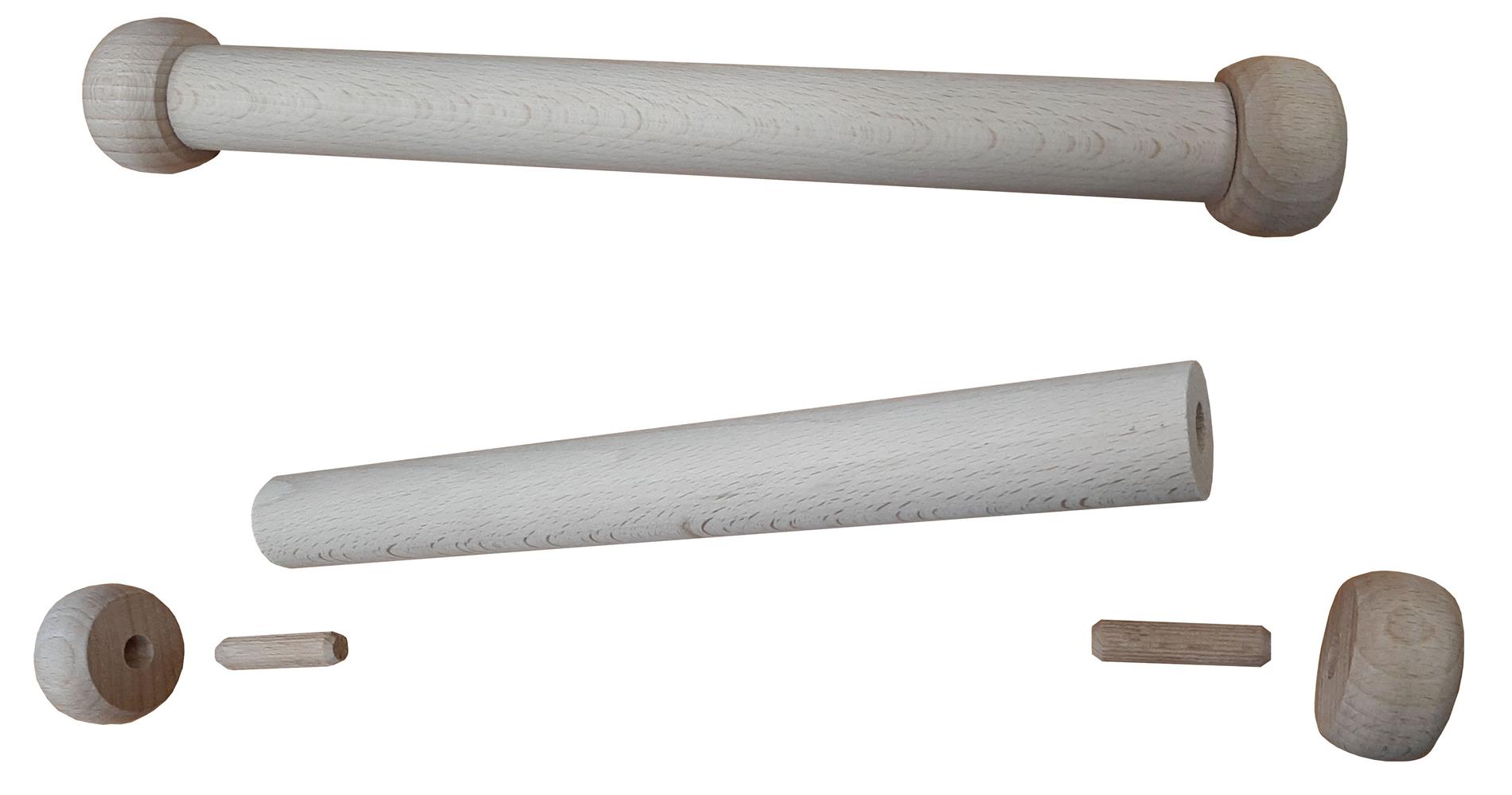

Wood handle (type DR 599-11)

  • massive beech wood handle
Order No. Type Weight [kg] Total length
 [mm]
Diameter [mm] Price from [euro]
04.03.09.04.0.0  BD 599-03 0,50 100 ø15 26,30 €
04.03.09.03.0.0  BD 599-04 1,00 180 ø22 45,90 €
04.03.09.06.0.0 SK 598  2,70 - ø28 55,00 €
04.03.09.07.0.0 SK 598S 3,50 - ø28 131,80 €
04.03.09.01.0.0 BDS 599-07  1,00 50 ø18 44,20 €
04.03.09.02.0.0  BDS 599-10 1,10 80 ø18 47,20 €
04.03.09.08.0.0 BDK 599-16 AL30x100  0,80 100 ø30 70,40 €
59922 BDK 599-22 AL25x200  0,50 200 ø25 50,90 €
59923 BDK 599-23 AL25x100  0,26 100 ø25 47,10 €
59925 BD 599-25 SK  0,32 55 ø19 42,40 €
59926 BD 599-26 BK  0,32 55 ø19 39,40 €
04.03.09.05.0.0 DR 599-11 0,15 310 ø28 3,80 €
The stated prices are for orientation only and do not include VAT, the condition: EXW Dobříš CZ.
