Joinery tools (door clamps, panel clamps, ...) - DU, PC25, FG509

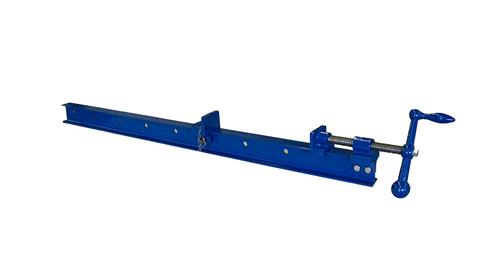

Door clamp (type DU)

  • trapezoidal thread
  • the vice's massive body
  • adjustable clamping length
  • large clamping handle

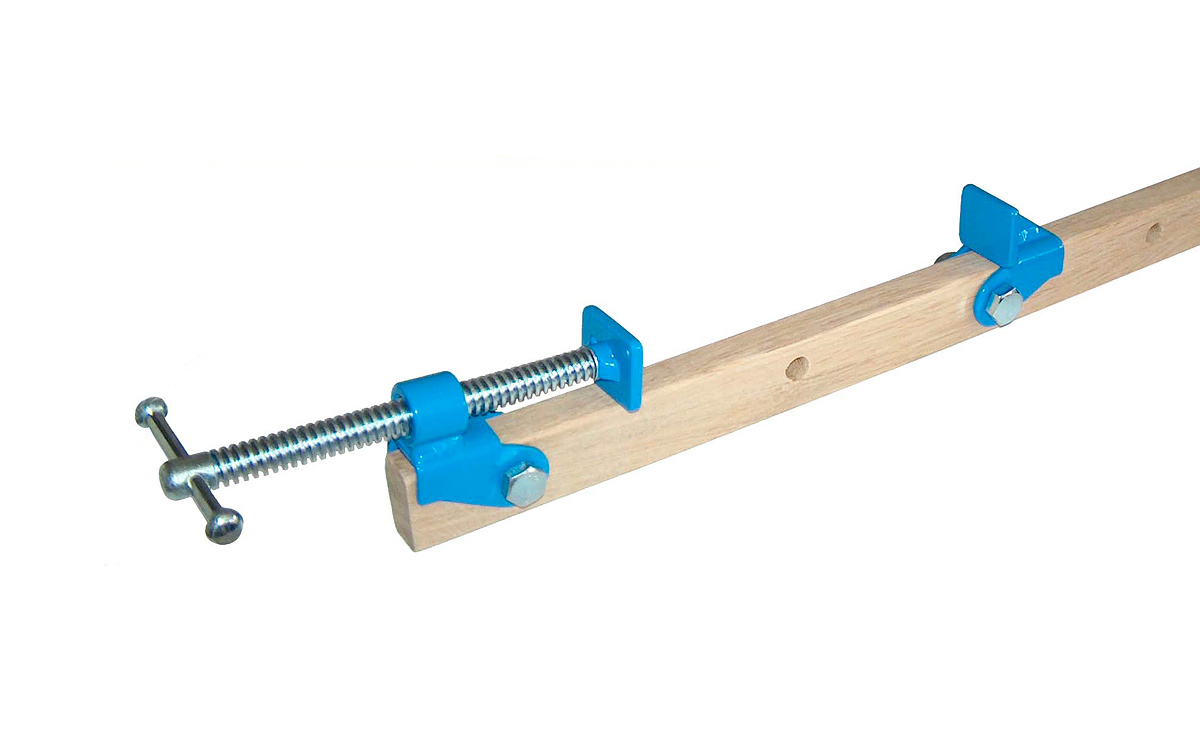

Flat clamp for gluing board materials (type PC)

  • steel clamping and pressure head with quality zinc-plated spindle
  • tackle with riveted end pieces
  • powder paint surface finish
  • Tr 16×4 spindle
  • stroke 120 mm
  • M12 safety nut
  • recommended spacing of the L 100 / 13 mm diameter security screw hole
  • the wooden bar is not part of the clamp

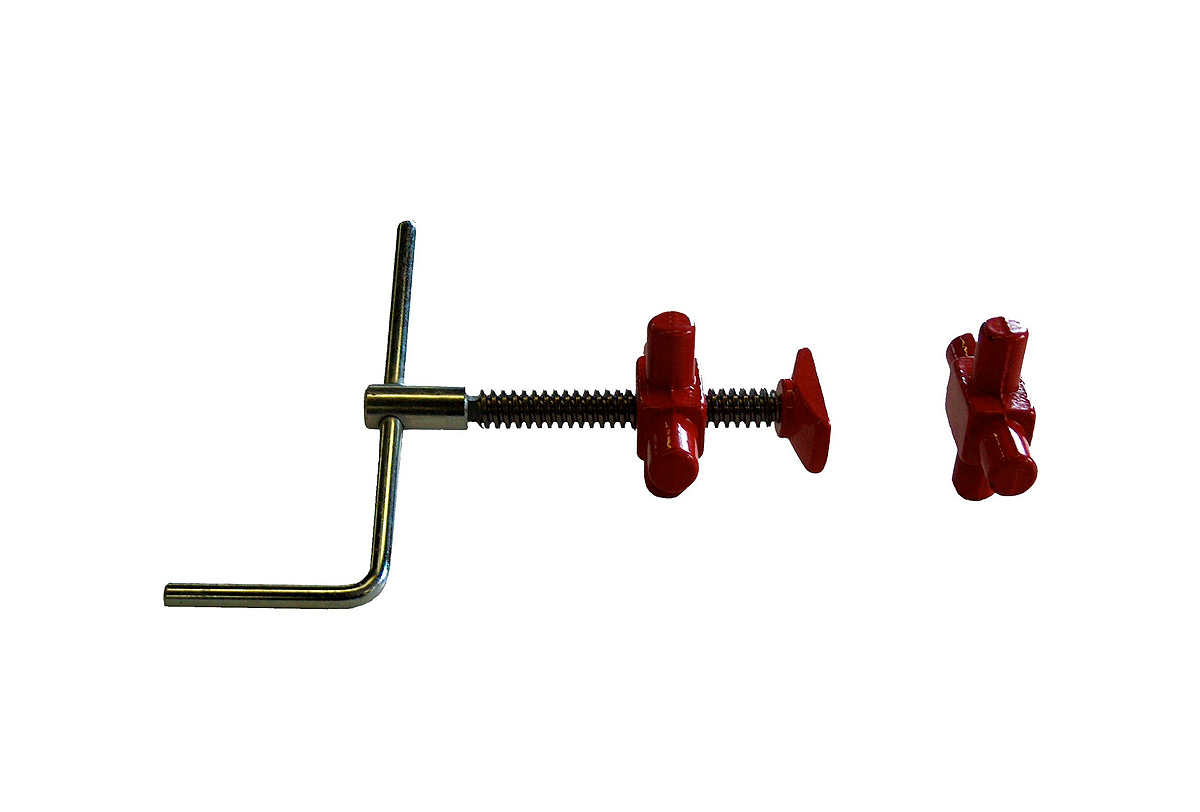

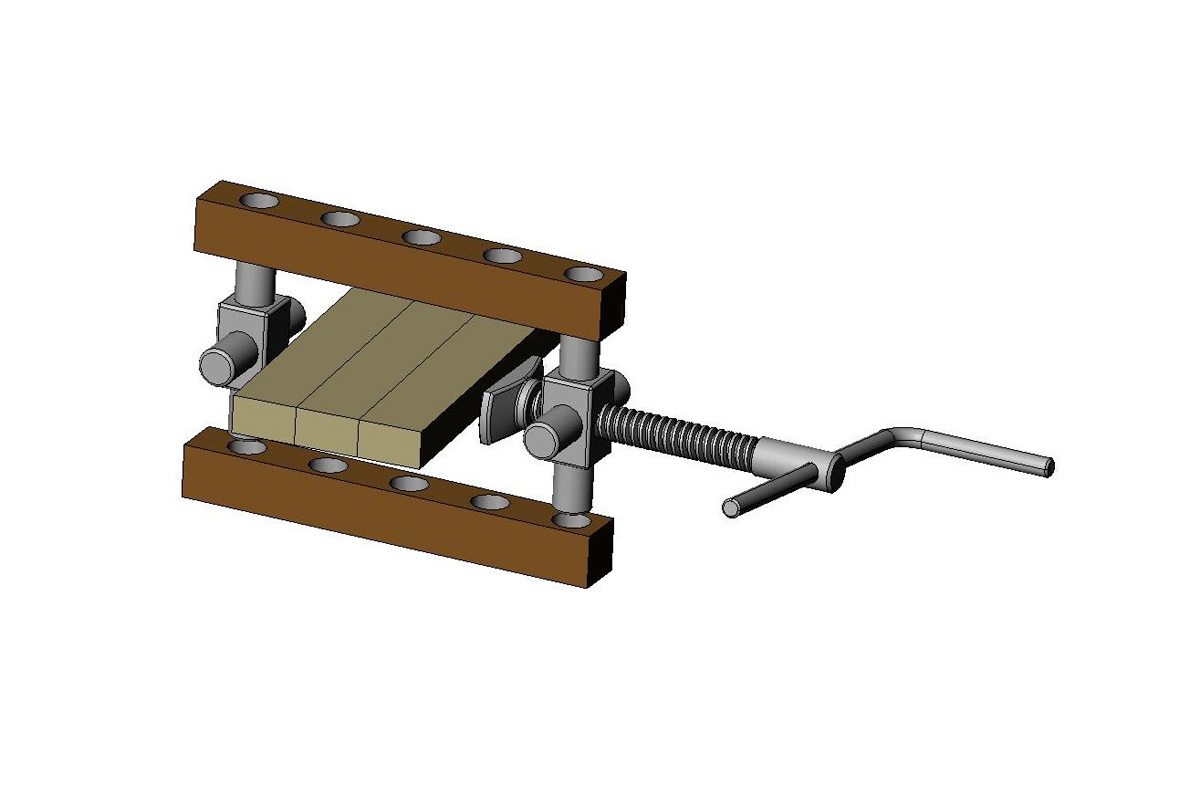

Panel clamps (type FG)

  • joinery plate clamp
  • supplied as an assembly
  • max.height clamped part - 40 mm
  • recommended hole for cross of 19-20 mm diameter according to tightness of connection and table material
Order No. Type Weight [kg] Length of fasten [mm] Thread [mm] Width [mm] Price from [euro]
04.03.04.01.0.0 DU 1000 13,2 1000 Tr 24×5 85 95,50 €
04.03.04.02.0.0  DU 1200 14,5 1200 Tr 24×5 85 97,90 €
04.03.04.03.0.0 DU 1500 16,1 1500 Tr 24×5 85 105,20 €
04.03.04.04.0.0 DU 1800 17,5 1800 Tr 24×5 85 112,60 €
04.03.04.05.0.0   DU 2000 19,4 2000 Tr 24×5 85 115,10 €
04.03.04.06.0.0  DU 2200 20,5 2200 Tr 24×5 85 119,90 €
04.03.04.07.0.0   DU 2500 22,2 2500 Tr 24×5 85 122,40 €
06.02.03.11.0.0   PC 25 0,8 dle délky tyče Tr 16×4 25 24,50 €
04.03.02.01.0.0 FG 509 set 0,9 - Tr 16×4 - 15,00 €
The stated prices are for orientation only and do not include VAT, the condition: EXW Dobříš CZ.
