Hydraulic clamps - YORK H, Titan H

York H & Titan H

  • hydraulic craftsman parallel bench vice swivelling ±35°
  • jaws made of high-quality steel hardened to 45 HRC ± 5 HRC
  • large anvil
  • precise guide roll
  • reamer holder with safety terminals

Clamping force :

  • hydraulic pressure 20 MPa …. 18,5 - 26,5 kN
  • stroke .... 4 mm

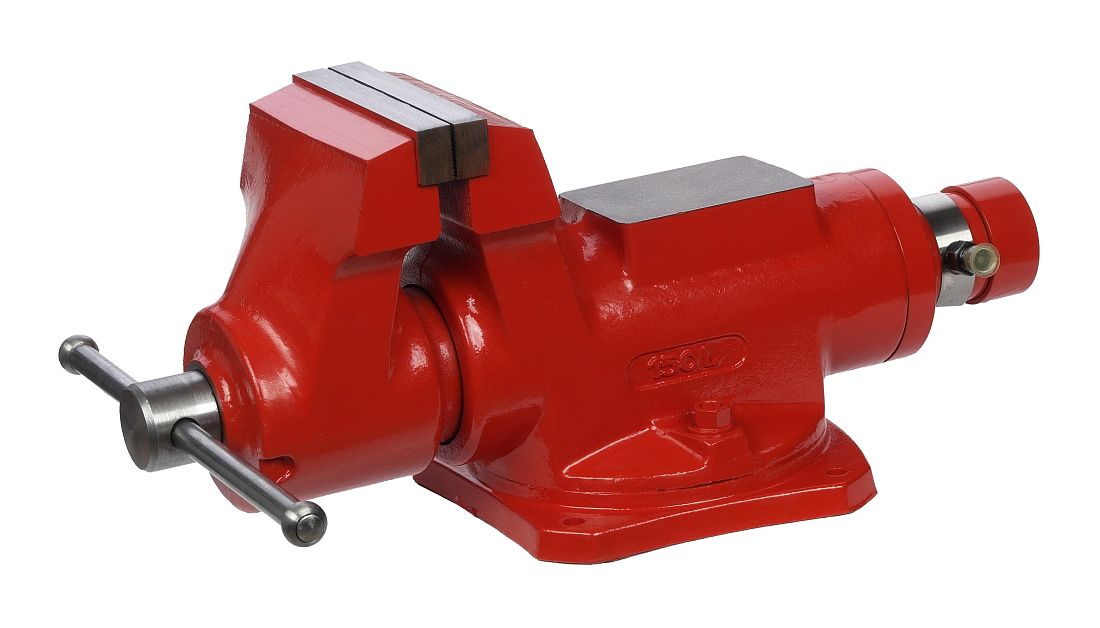

York H Standard

  • fastening to base plate by nuts

York H Lux

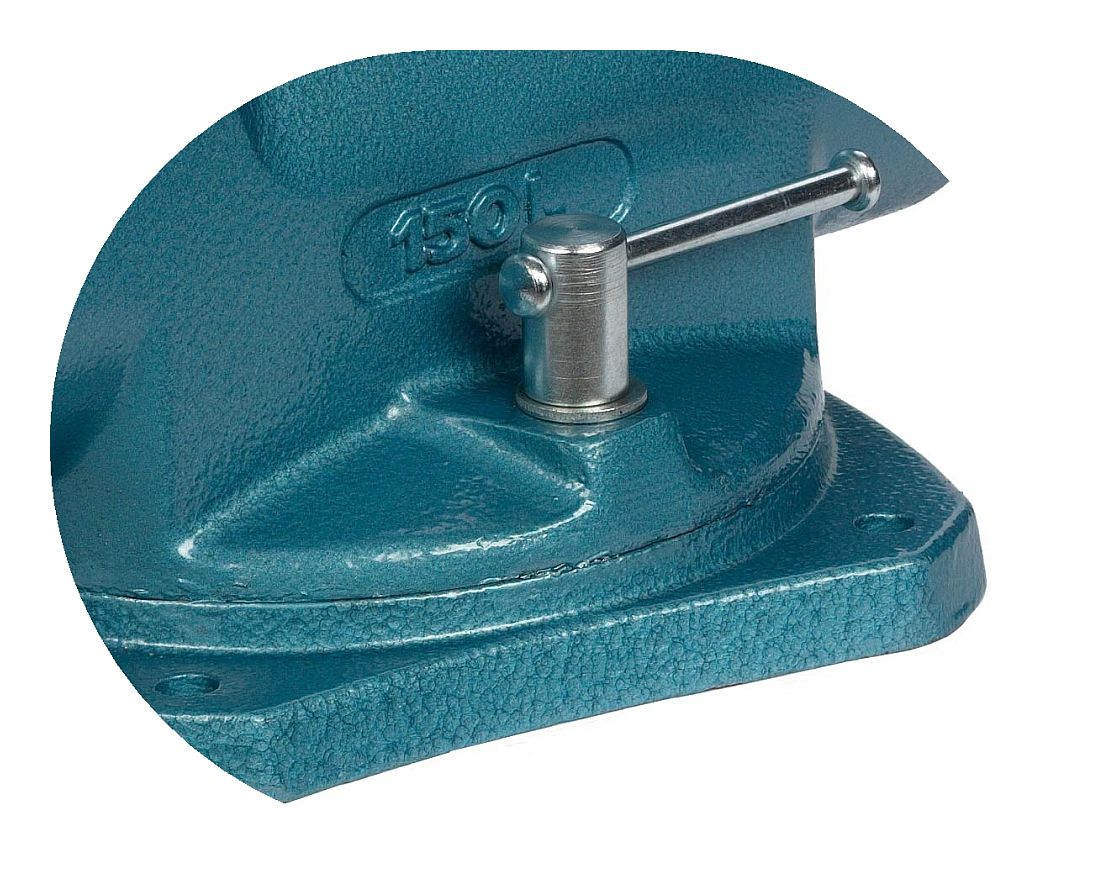

  • fastening to base plate by levers

York HT

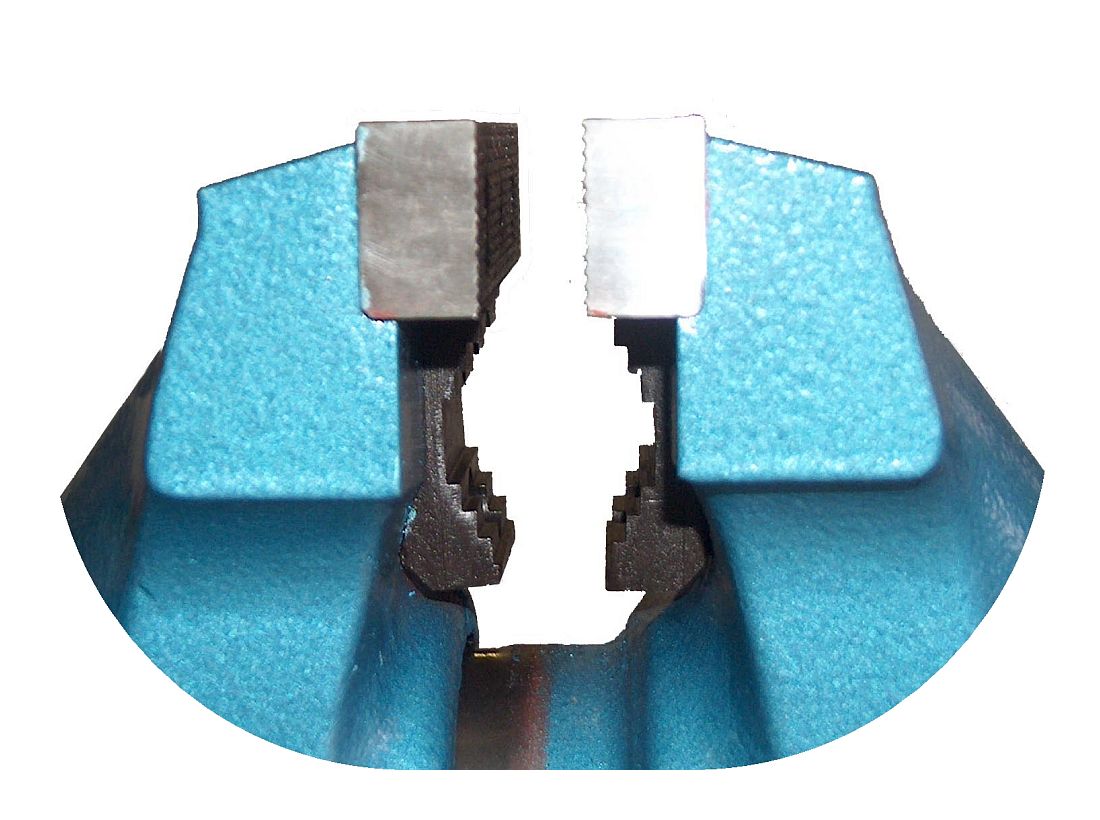

  • with pipe jaws

Titan H

  • swith basement plate swivelling 360°
  • fastening to base plate by nuts

Titan HT

  • with pipe jaws

Optional accessory :

  • reserve jaws
  • magnetic jaws insert
Order No. Type Weight [kg] Width of jaws [mm] Length of fasten [mm] Clamping force [kN] Price from [euro]
02.01.01.01.0.0 York 125 H Standard  21,8 125 115 18,5 469,70 €
02.01.01.01.0.1  York 125 HT Standard 21,8 125 115 18,5 489,50 €
02.01.01.01.1.0 York 125 H Lux 21,8  125 115 18,5 475,20 €
02.01.01.01.1.1    York 125 HT Lux 21,8  125 115 18,5 495,00 €
02.01.01.02.0.0 York 150 H Standard 31,8 150 125 26,5 525,80 €
02.01.01.02.0.1     York 150 HT Standard 31,8 150 125 26,5 541,20 €
02.01.01.02.1.0 York 150 H Lux   31,8 150  125 26,5 531,30 €
02.01.01.02.1.1     York 150 HT Lux 31,8 150 125 26,5 556,60 €
02.02.01.01.0.0   Titan 200 H 42,4  200 200 26,5 1042,80 €
02.02.01.01.0.1    Titan 200 HT 42,4 200  200 26,5 1069,20 €
02.02.01.02.0.0   Titan 250 H 47,4  250 200 26,5 1 128,60 €
02.02.01.02.0.1   Titan 250 HT 47,4   250 200 26,5 1 153,90 €
The stated prices are for orientation only and do not include VAT, the condition: EXW Dobříš CZ.
