Workbench spindles (quick, speed, ...) - HVQ, HVS

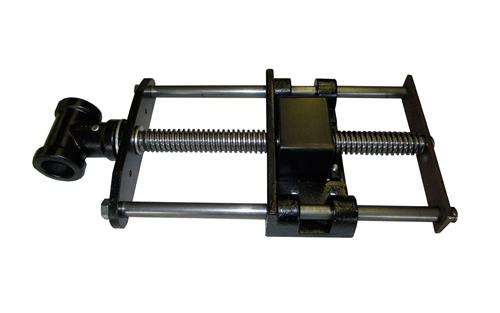

QUICK (typ HVQ)

  • fast opening and clamping without the use thread of the spindle
  • workbench spindels for wood-work tables with double guideway
  • high quality trapezoidal thread
  • precision rod guiding

SPEED (typ HVS)

  • workbench spindels for wood-work tables
  • special Tr 28×8 fast thread
  • cast iron casting

FAST WHEEL (type WH)

  • 'T' head for wooden handle replaced by
  • clamping quick wheel with handle
  • possibility of use for hoblic spindles type HV (HV510WH, HV511WH, HV512WH, HV514WH, HV517WH, HV582WH), type double HV (HV515WH, HV516WH), type flat HV (HV519WH, HV581WH)
  • possibility of use also for hoblic spindles type HVQ, HVS



Order No. Type Weight [kg] Thread [mm] Total length
 [mm]
Working length
 [mm]
Price from [euro]
04.03.01.05.1.0 HVQ 515 4 Tr  24×5 390 205 104,50 €
04.03.01.06.1.0 HVQ 516 8,6 Tr 24×5 550 335 135,20 €
04.03.01.01.2.0 HVS 510 3,4 Tr 28×8  535 390 56,40 €
04.03.01.02.2.0 HVS 511 2,4 Tr 28×8 330 165 51,60 €
04.03.01.06.2.0 HVS 516 8,6 Tr 28×8 550 335 102,00 €
04.03.01.08.2.0 HVS 519 9,7 Tr 28×8 580 250 119,80 €
Les prix sont indiqués à titre informatif et sans la TVA, EXW Dobříš CZ.
