Workbench spindles (flat guide, ...)- HV519, HV581, HV521, SRL

Spindels with flat guide (type HV 519, HV 581)

  • rotating nut to eliminate any bench planer’s inaccuracies and errors
  • workbench spindels for wood-work tables with flat steel guide
  • quality rolled thread
  • opening for wrench diameter 28 mm
  • modern design and finish
  • robust flat steel guide with minimum backlash

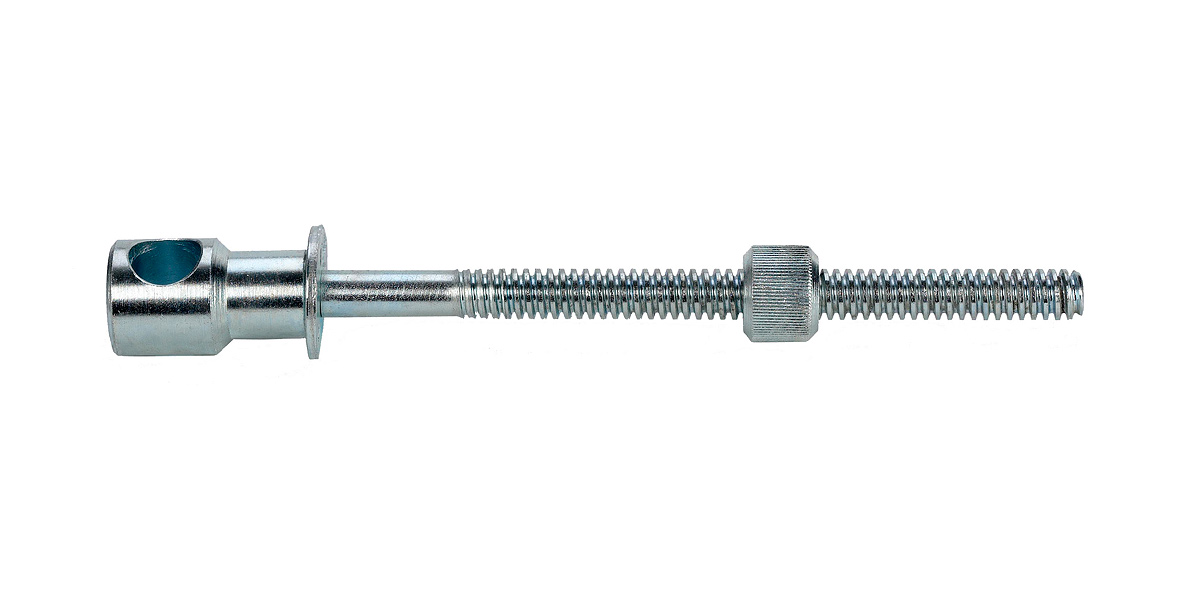

Spindels all-steel (type HV521)

  • all-steel workbench spindels for wood-work tables
  • quality rolled thread
  • opening for wrench diameter 23 mm

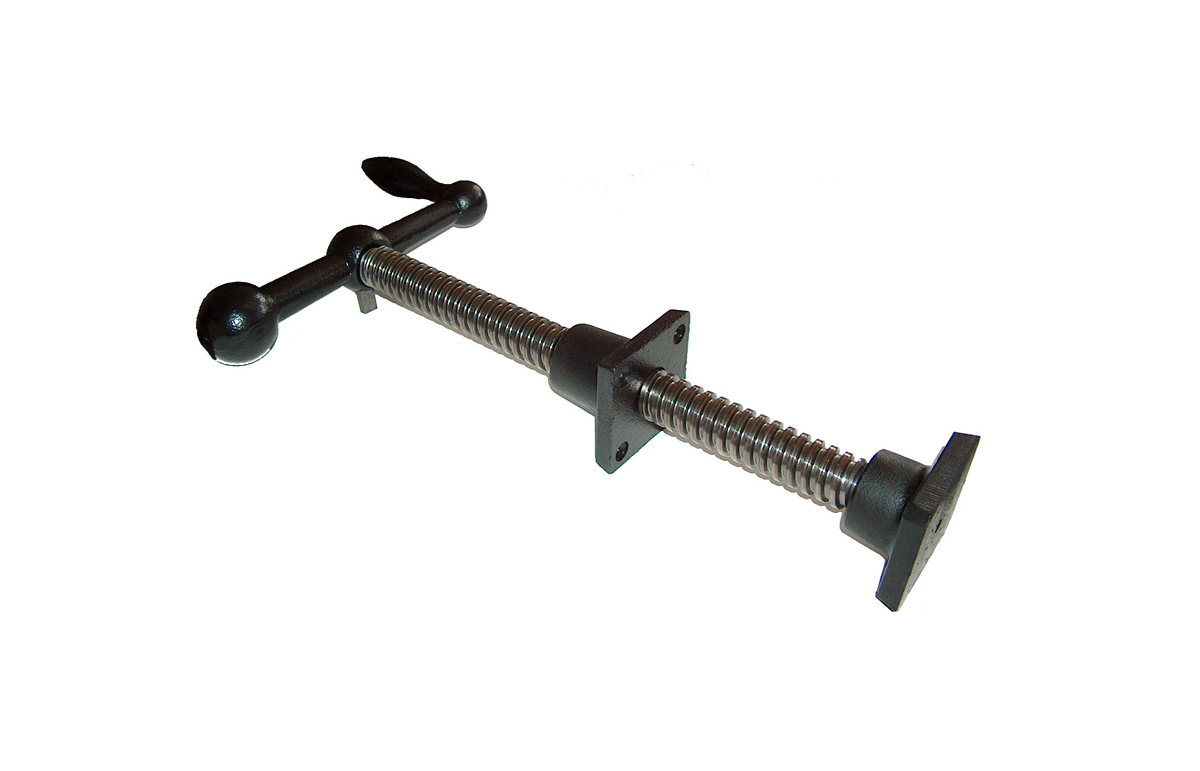

Screws for manual presses (type SRL 200,SRL 300)

  • 2 sizes – working length 200 mm and 300 mm
  • robust Tr 28×8 cylindrical thread with large pitch
  • massive nuts and pressure head with rapid-clamping lock
  • universal application for various in-structures
  • on request the guiding nut and pressure head can be modified
Order No. Type Weight [kg] Thread [mm] Total length
 [mm]
Working length
 [mm]
Price from [euro]
04.03.01.08.0.0   HV 519 9,7 Tr 28×5  560 220 76,70 €
04.03.07.03.0.0  HV 581 8,0 Tr 24×5 511 250 67,00 €
04.03.01.09.0.0  HV 521 1,5 Tr 18×4 325 200 13,10 €
04.03.05.01.0.0  SRL 200 3,9 Tr 28×8  365 (440) 200 66,30 €
04.03.05.02.0.0 SRL 300 4,3 Tr 28×8 425 (500) 300 71,40 €
Les prix sont indiqués à titre informatif et sans la TVA, EXW Dobříš CZ.
