Telescopic holder and tipper of vices

TD

  • telescopic screw holder of vices York 100, 125, 150 and Extra 150
  • allowing to adjust the vice to the right position
  • range of adjustment: 0 - 200mm

PTS

  • vice tipper
  • the vice is easy tipped under the table top
  • the vice weight is balanced by a pneumatic spring
  • secured in the vertical position by screw
  • the tipper can be used for York 100 and 125 vices
  • a device for accurate setting of 30°, 45°, 60° and 90° is available optionally, and also for other angles

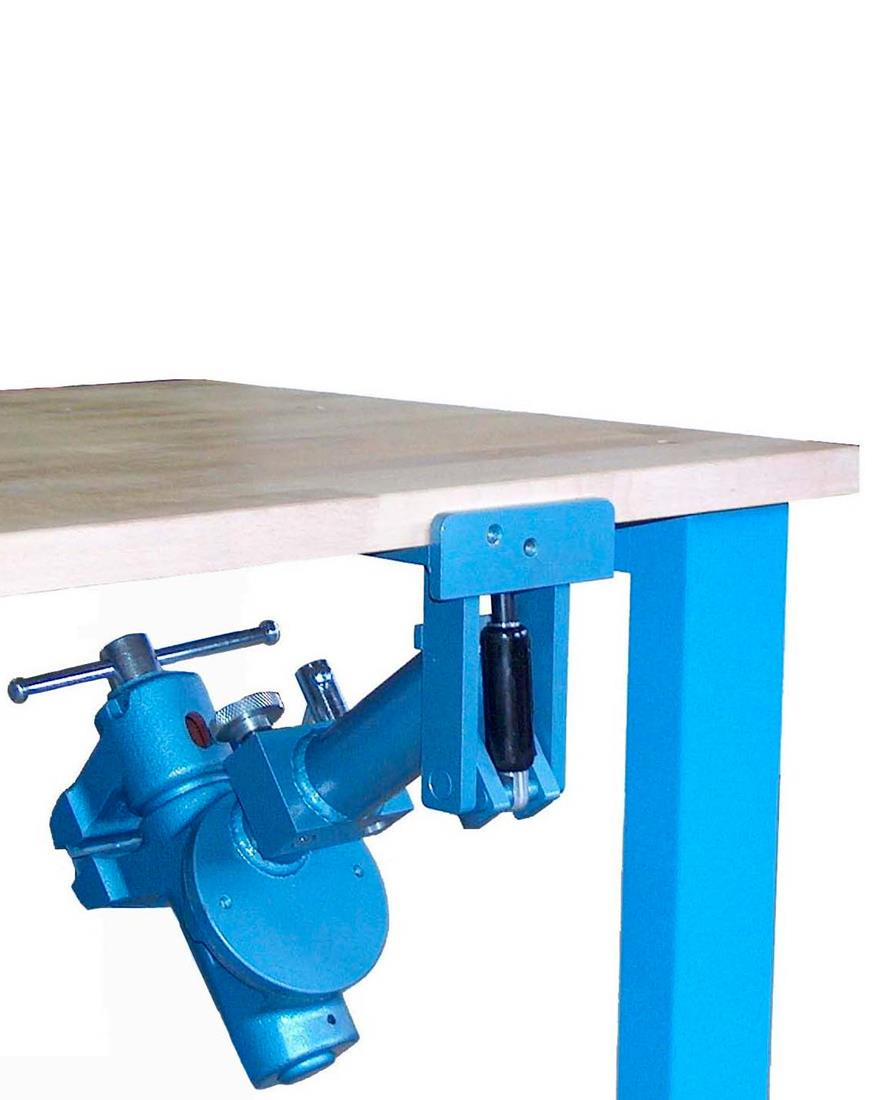

PTT

  • vice tipper with telescopic holder
  • pneumatic spring allowing to adjust the vice to the right position
  • the vice is easy tipped under the table top
  • the vice weight is balanced by a pneumatic spring
  • secured in the vertical position by screw
  • range of adjustment: 0 - 130mm
  • the tipper can be used for York 100 and 125 vices
  • can be also used for different types of products
Order No. Type Weight [kg] Range of adjustment [mm] Price from [euro]
06.01.03.01.0.0 TD 200  8,6 0 - 200 153,30 €
06.01.03.02.0.0 PTS 100 7,2  - 263,50 €
06.01.03.03.0.0 PTS 125 7,2  - 263,50 €
27301 PTT 100 12,5  0 - 130 347,80 €
27302 PTT 125  12,5 0 -  130 347,80 €
Los precios son orientativos y están indicados sin IVA, EXW Dobříš CZ.
