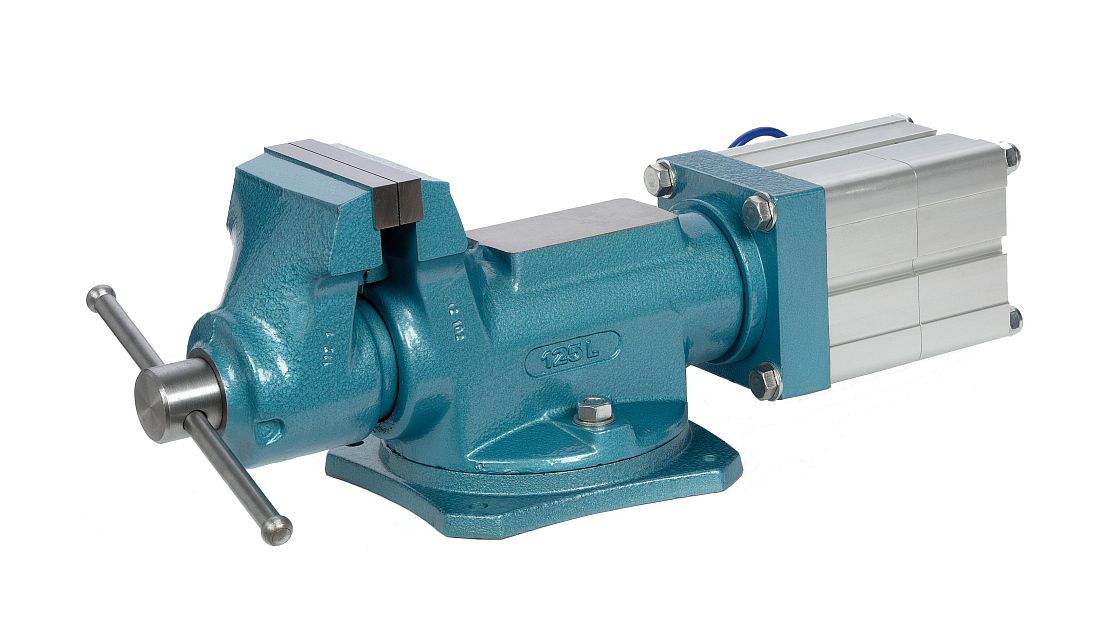

Pneumatic clamps

York P & Titan P

  • pneumatic craftsman parallel bench vice swivelling +/-35°
  • jaws made of high-quality steel hardened to 45HRC ± 5 HRC
  • large anvil
  • precise guide roll
  • reamer holder with safety terminals

Clamping force:

  • air pressure 0,6 MPa .... 7,5 kN
  • on request the clamping force can be increased by 4 kN
  • stroke 4 mm

York P Standard

  • fastening to base plate by nuts

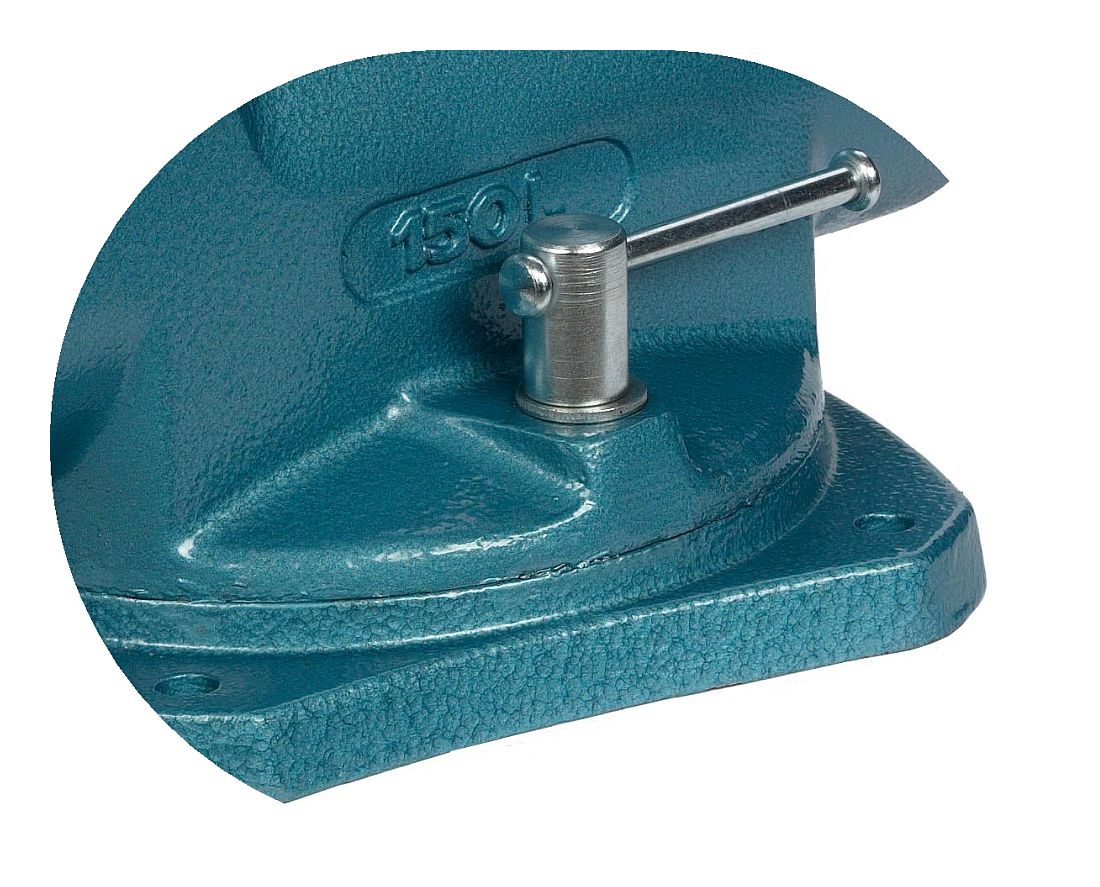

York P Lux

  • fastening to base plate by levers

York PT

  • with pipe jaws

Titan P

  • with basement plate swivelling 360°
  • fastening to base plate by nuts

Titan PT

  • with pipe jaws

Optional accessory:

  • reserve jaws
  • magnetic jaws insert
  • pneumatic controls assembly
Order No. Type Weight [kg] Width of jaws [mm] Length of fasten [mm] Price from [euro]
01.01.01.0.0 York 125 P Standard 28 125 115  1280,80 €
03.01.01.01.1.0   York 125 P Lux 28 125 115  1301,20 €
03.01.01.01.0.1 York 125 PT Standard 28 125 115  1307,60 €
03.01.01.01.1.1 York 125 PT Lux  28 125 115 1327,90 €
03.01.01.02.0.0  York 150 P Standard 38 150 125 1372,90 €
03.01.01.02.1.0   York 150 P Lux 38 150 125 1393,20 €
03.01.01.02.0.1    York 150 PT Standard 38 150 125 1407,10 €
03.01.01.02.1.1 York 150 PT Lux   38 150 125 1428,50 €
03.02.01.01.0.0  Titan 200 P 50 200 200 1 794,40 €
03.02.01.01.0.1 Titan 200 PT   50 200 200 1 824,40 €
03.02.01.02.0.0  Titan 250 P 55 250 200 1 893,90 €
03.02.01.02.0.1 Titan 250 PT   55 250 200 1 923,90 €
Los precios son orientativos y están indicados sin IVA,EXW Dobříš CZ.
